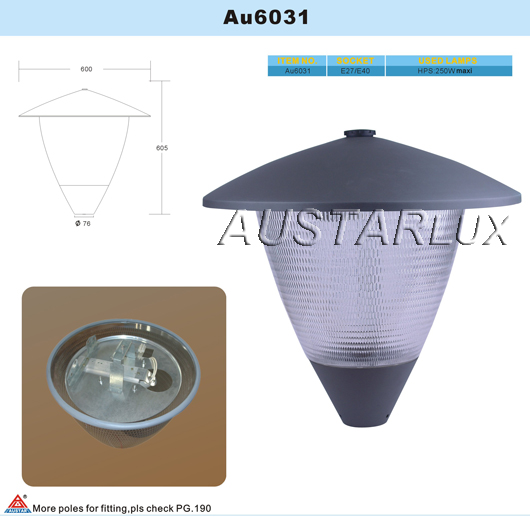

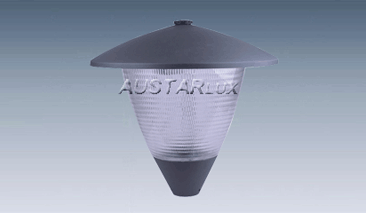

AU6031 luminaire is made of 3 main parts:
The Dome
Made of embossed aluminium anodized insures the overwhole protection of the luminaire. The DOME assembly in stainless steel is held to the flange by means of Zinc coated steel threaded rods, access for maintenance is easily achieved by removing the top part of the DOME assembly.
The Diffuser
Made of frost polycarbonate. A reflector in pure aluminium stamped out in one piece.
The Base
Made of die cast aluminium, onto which the control gear, lamp and its protection cover are fixed. Mounting for a 60mm pole.
Technical Specifications
Finish
Painted by polyester powder, color on request
Protection Degree
Optical block IP55
Shock Energy
20 Joules (polycarbonate bowl)
Electrical Class
CLASS I (CLASS II on request)
Frequently Asked Questions
What materials are used to construct the AU6031 luminaire?
The AU6031 luminaire features three primary materials: an anodized embossed aluminum dome, a frosted polycarbonate diffuser with a pure aluminum reflector, and a die-cast aluminum base.
How is maintenance access managed for the dome assembly?
Maintenance access is straightforward. The stainless steel dome assembly is secured to the flange via zinc-coated steel threaded rods, and the interior can be easily reached by removing the top section of the dome.
What is the protection rating and durability of the AU6031?
The optical block offers an IP55 protection degree, while the frosted polycarbonate bowl provides exceptional impact durability with a shock energy resistance of 20 Joules.
What are the mounting requirements for the AU6031 base?
The die-cast aluminum base, which houses the control gear, lamp, and protection cover, is designed for mounting on a standard 60mm diameter pole.
Is the luminaire available in different colors and electrical classes?
Yes. The luminaire is finished with polyester powder paint, with colors customizable upon request. In terms of electrical safety, it is standard Class I, but Class II configuration can be provided upon request.
