Product Description

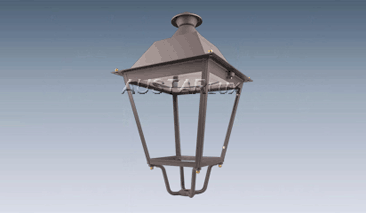

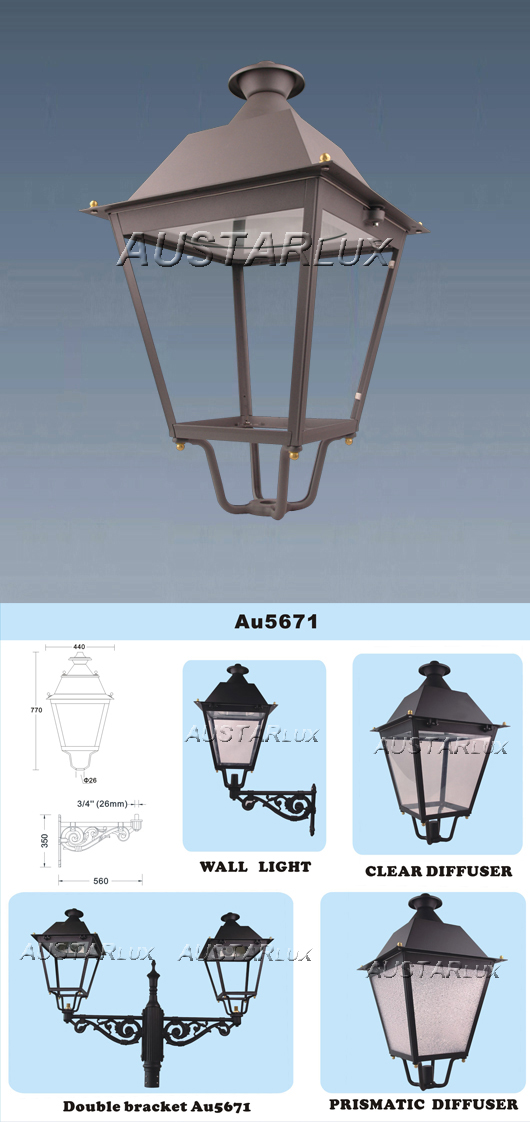

Model: AU5671 VILLA LUMINAIRE Modular 5-Part Design

Main Components

5-Part Architecture: Composed of parts AU5671/01, AU5671/02, AU5671/03, AU5671/04, and AU5671/05.
Finial Top: Manufactured from INJECT aluminium body, secured to the dome with 1 robust steel pipe.
Dome: Built from an INJECT aluminium body; easily removable for instant access to the control gears.
Frame: Assembled from 3 INJECT aluminium components. Features an aluminium sheet ring supported by 4 ribs fixed to the base flange (26mm mounting).
Base Flange: Cast aluminium construction with top mounting capability for 26mm.

Optical & Control Systems

Optical Block: Uses 3 sealed parts to guarantee a high degree of environmental protection.
Control Gear: Mounted on a CDG steel sheet; highly accessible once the dome and finial top are detached.
Diffuser Options: Opal or Clear PC diffuser as standard, with tempered glass available upon request.
Reflector Variants: Standard embossed CDG steel sheet (IP33) OR premium pure, single-piece stamped and anodized aluminium reflector (IP65) sealed directly with silicon.

Technical Specifications

Protection Degree	IP33 (Standard) / IP65 Optical Block (On Request)
Shock Energy	2 Joules (with PC diffuser)
Safety Class	Class I (Standard) / Class II (On Request)
Finish Paint	Polyester powder-coated, custom color available on request

Frequently Asked Questions

What structural parts constitute the AU5671 luminaire?

The AU5671 luminaire (VILLA LUMINAIRE) is built with a modular design consisting of 5 distinct parts: AU5671/01, AU5671/02, AU5671/03, AU5671/04, and AU5671/05.

How is access maintained for the internal control gear?

Accessing the control gear is simple. By removing the dome and the finial top, technicians can quickly and easily reach the control gear mounted on the CDG steel sheet.

What diffuser and glass choices are offered?

The luminaire offers standard diffuser options in either Opal or Clear PC (Polycarbonate). Additionally, tempered glass is available upon specific request.

What are the IP ratings for the AU5671 luminaire?

It features a standard protection degree of IP33. However, an IP65 rated optical block can be provided on request using a pure, anodized aluminium reflector sealed with silicon.

What electrical insulation classes does this luminaire support?

The AU5671 is designed as a Class I electrical fixture as standard, with a Class II configuration available on request.

What is the impact resistance (shock energy) of the diffuser?

When configured with the PC diffuser, the fixture provides a shock energy resistance rating of 2 Joules.
