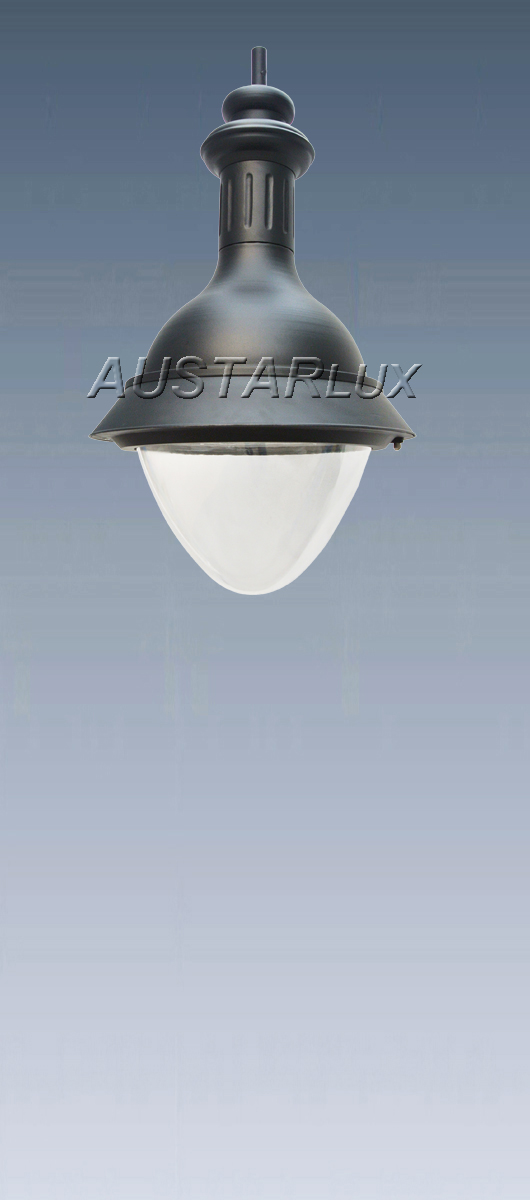

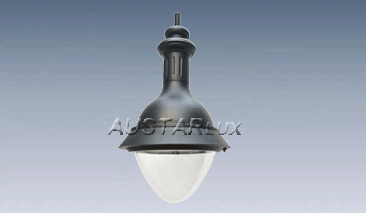

Made of sand cast aluminium insures the overwhole protection of the luminaire.
Made of die cast aluminium. The frame is attached by means of a hinge and 1 S/S screw under the body, assuring easy access to the control gear and lamp.
It comprises a pure refined aluminium reflector, stamped out in one piece and polished which is attached to the frame, and another CDG steel reflector fixed with aluminium reflector. An arc tempered glass or methacrylate diffuse is sealed directly to the CDG steel reflector by means of a silicone seal insuring a high degree of protection.
Made of cast aluminium fixed to the BODY. The bracket shape can be customized on your request.
The luminaire is constructed with high-quality aluminium: sand cast aluminium for the top, die cast aluminium for the body, and cast aluminium for the bracket.
Yes, the body frame is attached via a hinge and secured with a single stainless steel (S/S) screw under the body, which ensures quick and easy access to both the control gear and the lamp.
The optic system includes a polished, one-piece stamped pure refined aluminium reflector attached to the frame, along with a secondary CDG steel reflector. It is sealed with a silicone gasket for superior environmental protection.
The optical block provides an IP65 protection rating, ensuring excellent resistance against dust and water ingress.
The shock energy rating is 20 Joules when using the Tempered Glass diffuser, and 2 Joules when using the PC bowl diffuser.
Standard configurations are Class I, but Class II electrical protection can be provided upon request.
