Made of INJECT aluminium body fixed to the dome by means of 1 steel piping fixed (male) 26mm.
THE DOME
Made of INJECT aluminium body. Once removed, the dome and control gears are easily attained.
THE FRAME
Made up of 3 aluminium INJECT parts. A ring in aluminium sheet supported by 4 ribs in aluminium sheet fixed to the base flange. Mounting for 26mm held.
THE OPTICAL BLOCK
Made up of 3 parts sealed together so as to obtain a high degree of protection.
Technical Specifications & Details
A control gear is located on the CDG steel sheet; once the dome and the finial top are removed, the control gear is easily attained.
The diffuser is available in Opal or Clear PC diffuser, with Tempered glass available on request.
Reflector options: A reflector made in embossed CDG steel sheet (IP33), OR a reflector in pure aluminium, stamped out in one piece and anodized (fixed on the CDG steel sheet). A clear tempered glass is sealed directly to the reflector by means of a silicon seal insuring a high degree of protection (IP65). The control gear is placed around the reflector.
THE BASE FLANGE in cast aluminium, top mounting for 26mm.
Finished and painted by polyester powder, with colors available on request.
Classification Ratings
PROTECTION DEGREE
IP33 (Optical block IP65 available on request)
SHOCK ENERGY
2 joules (PC diffuser)
ELECTRICAL CLASS
CLASS I (CLASS II available on request)
Frequently Asked Questions (FAQ)

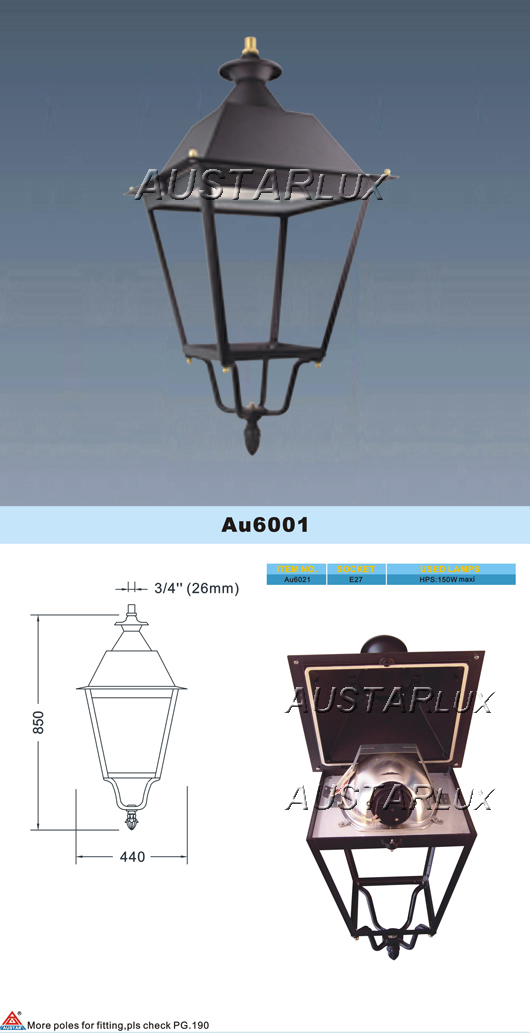

QWhat components make up the AU6001 structure?
The AU6001 is structured in 4 main parts: the finial top, the dome, the frame, and the optical block.
QIs it easy to access the control gear?
Yes, the control gear is highly accessible. Once you remove the dome and the finial top, the control gear can be easily reached.
QWhat are the available diffuser options for the AU6001?
The diffuser comes standard in Opal or Clear PC (Polycarbonate) material. Tempered glass can also be provided on request.
QWhat IP protection rating does this luminaire have?
The standard protection degree is IP33. However, an IP65 rated optical block is available upon request.
QWhat is the impact resistance (shock energy) of the PC diffuser?
The PC diffuser has a shock energy rating of 2 joules.
QAre Class I and Class II options available?
Yes, the luminaire comes in Class I configuration, and a Class II specification can be provided upon request.
