Product Description

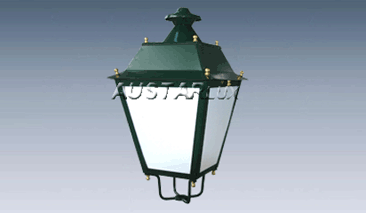

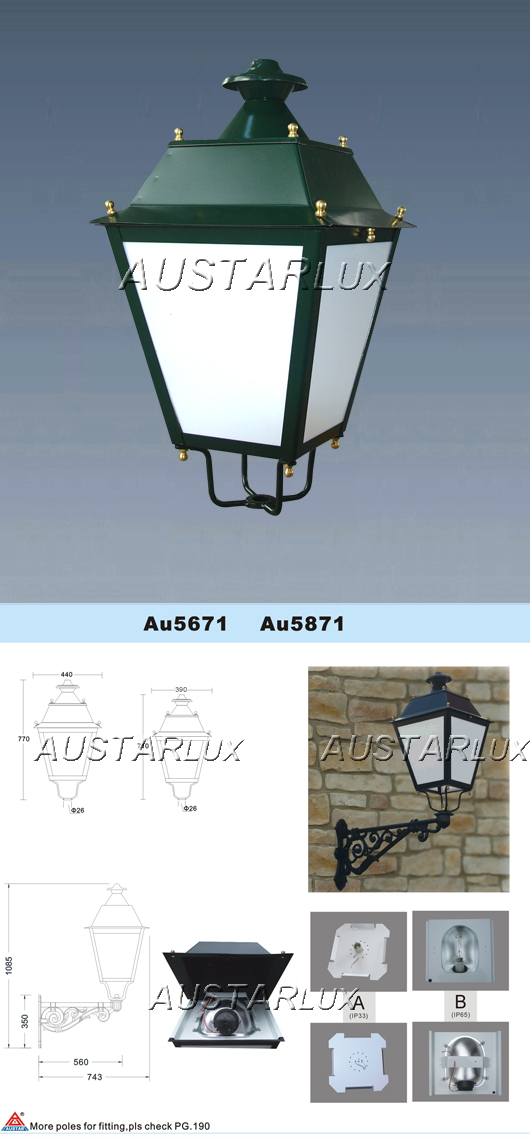

The AU5871 luminaire is engineered and constructed from five primary structural components, offering reliable durability and optimized lighting distribution:

Component Structure

The Finial Top

Made of an aluminium (or steel) sheet, stamped out in a single piece and securely welded to the dome.

The Dome

Constructed from an aluminium (or steel) sheet, stamped in one piece with 4 pieces fixed together. Removing the dome provides quick and easy access to the control gear.

The Frame

Composed of 3 parts: a square ring in aluminium (or steel) sheet, supported by 4 ribs in aluminium (or steel) sheet fixed to the base flange. Mounting is held at 26mm.

The Optical Block

Consists of 3 parts fixed securely together to ensure a high level of environmental and ingress protection.

Technical Details & Configurations

Control Gear Access: Positioned on the CDG steel sheet. By removing the dome and the finial top, the control gear is easily accessible.
Diffuser Options: Available in opal, clear, or frost methacrylate options.
Reflector Configurations: Reflector built with CDG steel sheet (IP33), OR a pure aluminium reflector, stamped in one piece and anodized, fixed on the CDG steel sheet. A clear tempered glass is sealed directly to the reflector using a silicon seal for high-level protection (IP65). The control gear is arranged around the reflector.
Base Flange: Features steel piping welded to one steel ring, with top mounting configured for 26mm.

Specifications

Body Material	Steel or aluminium sheet body available on request.
Finish Treatment	Painted by polyester powder, custom color available on request.
Protection Degree	IP33 standard; Optical block IP65 rating available on request.
Shock Energy Impact	2 Joules (when using the polycarbonate diffuser).
Electrical Class	CLASS I standard; CLASS II available on request.

Frequently Asked Questions

What materials are used in the construction of the AU5871 luminaire?

The main body, dome, finial top, and frame are fabricated using high-quality aluminium or steel sheets. The base flange consists of steel piping welded to a steel ring, and the structure can be finished with a polyester powder paint coating in requested colors.

What IP rating does the AU5871 luminaire offer?

The luminaire comes with a standard IP33 protection rating. However, an optical block upgrade providing an IP65 protection rating (featuring a pure aluminium anodized reflector and clear tempered glass sealed with silicon) is available on request.

Is the control gear easily accessible for maintenance?

Yes, maintenance is straightforward. Once you remove the dome and the finial top, the control gear positioned on the CDG steel sheet is easily and immediately accessible.

What types of diffusers are compatible with this luminaire?

The diffuser for this luminaire can be specified in opal, clear, or frost methacrylate. Additionally, a polycarbonate diffuser option is available to achieve a specific shock impact rating.

What is the shock energy resistance rating of the AU5871?

When fitted with the polycarbonate diffuser option, the AU5871 luminaire is rated to withstand a shock energy impact of up to 2 Joules.

What electrical insulation classes are supported?

The standard configuration of the AU5871 luminaire conforms to CLASS I safety standards. A CLASS II electrical insulation configuration can be provided on request.
