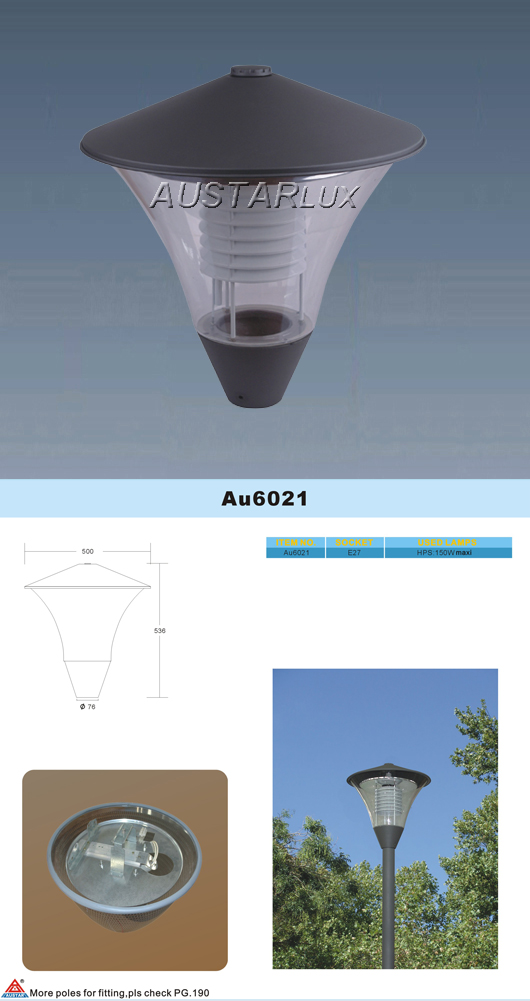

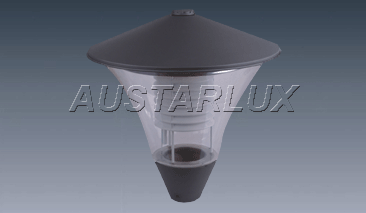

AU6021 luminaire is made of 3 main parts:
THE DOME
Made of embossed aluminium anodized, insuring the overall protection of the luminaire. The dome assembly in stainless steel is held to the flange by means of zinc-coated steel threaded rods. Access for maintenance is easily achieved by removing the top part of the dome assembly.
THE DIFFUSER
Made of frost polycarbonate. Features a reflector in pure aluminium, stamped out in one single piece.
THE BASE
Made of die-cast aluminium, onto which the control gear, lamp, and its protection cover are fixed. Designed for mounting onto a 60mm post.
Finish
Polyester powder, color on request
Protection Degree
Optical block IP55
Shock Energy
20 Joules (polycarbonate bowl)
Electrical Class
CLASS I (CLASS II on request)
Frequently Asked Questions
Q:
What are the primary materials used in the AU6021 luminaire?
The AU6021 is constructed from three main components: an anodized embossed aluminium dome, a frost polycarbonate diffuser with a pure aluminium reflector, and a die-cast aluminium base.
Q:
How is the AU6021 luminaire accessed for maintenance?
Maintenance access is simple and convenient. It is achieved by removing the top part of the dome assembly, which is constructed from stainless steel and secured with zinc-coated steel threaded rods.
Q:
What is the protection rating (IP code) for the AU6021?
The optical block of the AU6021 luminaire features a protection rating of IP55, safeguarding the internal components against dust and moisture.
Q:
How impact-resistant is the diffuser on the AU6021?
The frost polycarbonate bowl of the diffuser provides a robust shock energy resistance of up to 20 Joules.
Q:
What mounting size is required for the AU6021 base?
The die-cast aluminium base of the luminaire is designed to mount onto a standard 60mm diameter pole or mounting bracket.
Q:
What color options and electrical classes are available?
The luminaire is finished with a polyester powder paint, with colors available upon request. It is designed as Class I, with Class II insulation options available on request.
