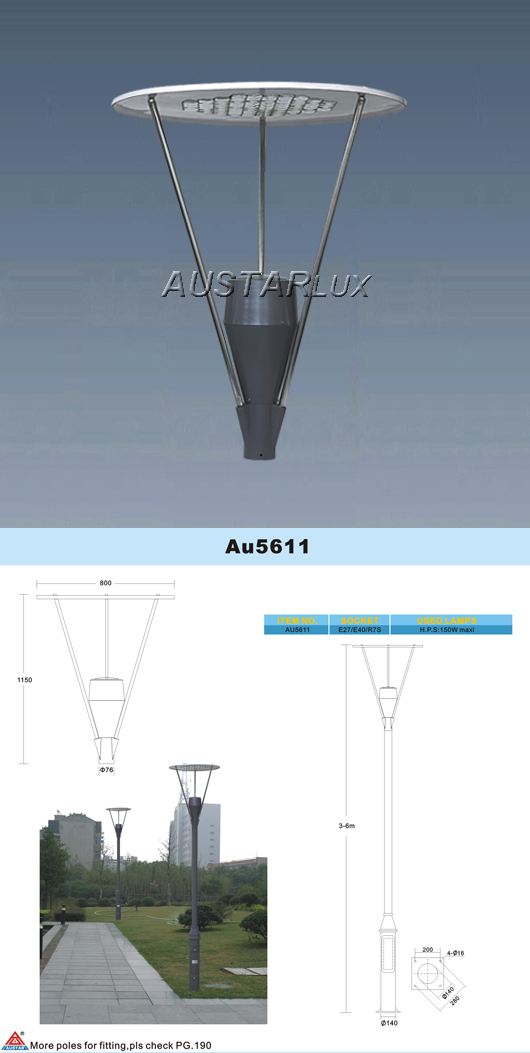

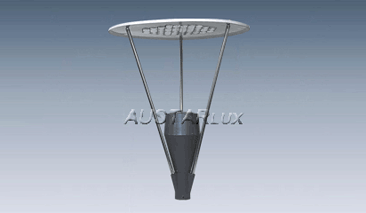

THE CAP: Made of durable fiberboard, featuring an anodized plastic reflector securely fixed inside the fiberboard structure.
THE FRAME: Constructed from 2 parts, featuring 3 stainless steel mountings fixed directly to the aluminium base flange. Designed for a 76mm entry and held securely with 3 stainless steel screws.
THE OPTICAL SYSTEM: Built with an aluminium body and closed by tempered glass sealed inside a cast aluminium cover plate, which is fastened to the main frame. A silicon seal ensures a high level of environmental protection.
Technical Specifications
Protection Degree
Optical block IP65
Shock Energy
20 Joules (Tempered Glass)
Electrical Safety
CLASS I
Finish & Coating
Polyester powder painted (color on request)
Configuration Details
ITEM NO.
SOCKET
USED LAMPS
AU5611
E27 / E40 / R7S
H.P.S: 150W maxi
Frequently Asked Questions
Q: What materials are used to construct the AU5611 luminaire?
A: The AU5611 luminaire consists of a fiberboard cap with an anodized plastic reflector, an aluminium frame with stainless steel mountings, and an aluminium optical block closed by tempered glass and sealed with a silicon gasket.
Q: What is the ingress protection (IP) rating for this luminaire?
A: The optical block of the AU5611 luminaire features an IP65 protection degree, ensuring it is dust-tight and protected against water jets.
Q: What sockets and lamp types are compatible with the AU5611?
A: It is compatible with E27, E40, and R7S sockets. It is designed to host High-Pressure Sodium (H.P.S) lamps up to a maximum wattage of 150W.
Q: How is the frame of the luminaire mounted?
A: The frame features 3 stainless steel mountings fixed to an aluminium base flange. The mounting is suitable for a 76mm entry and is secured firmly with 3 stainless steel screws.
Q: What is the impact resistance level of the optical cover?
A: The optical block is sealed with tempered glass that offers high shock energy resistance of up to 20 joules.
Q: Can I request a specific finish color for the luminaire?
A: Yes, the luminaire is finished with protective polyester powder paint, and specific colors can be provided upon request.
