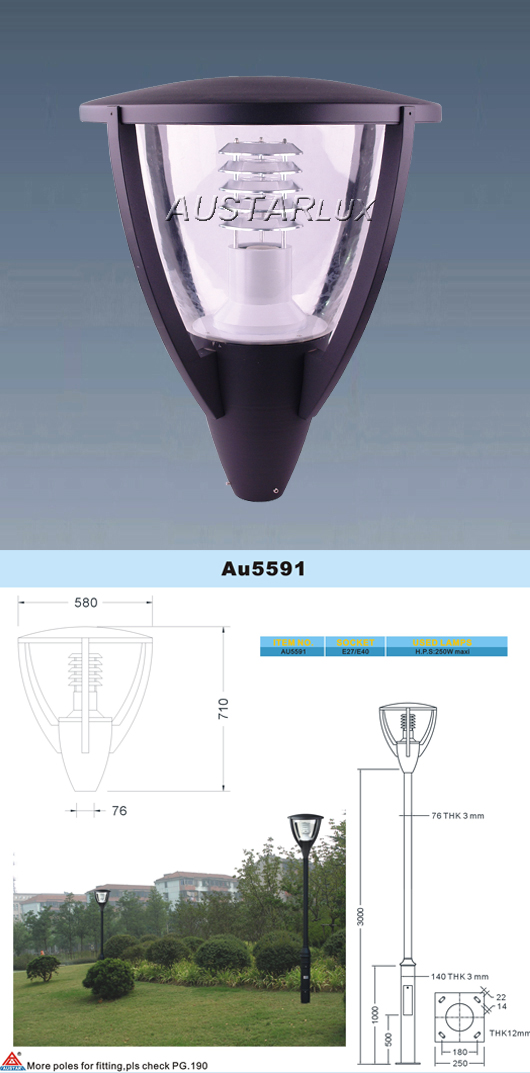

Made of embossed aluminium sheet. Once removed, the cap and control gear are easily attained for maintenance.
The Frame
Consists of 2 parts: 4 arms in cast aluminium fixed to the base flange, with mounting for a 76mm entry held securely with 3 stainless steel screws.
The Optical Block
Made up of 3 parts sealed together to obtain a high degree of protection:
A control gear cover with lamp holder cap.
A conical bowl in methacrylate.
A reflector in CDG steel, stamped out in one piece, painted white color by polyester powder.
Technical Specifications
Finish & PaintingPolyester powder, color on request
Protection DegreeOptical block IP65
Shock Energy2 Joules (Polycarbonate bowl)
Safety ClassCLASS I / CLASS II
Item No.
Socket
Used Lamps
AU5591
E27 / E40
H.P.S: 250W maxi
Frequently Asked Questions

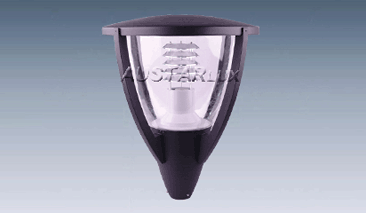

Q1: What are the main structured parts of the AU5591 luminaire?
A1: The AU5591 luminaire consists of three primary parts: the Cap (embossed aluminium), the Frame (cast aluminium), and the Optical Block.
Q2: How is the frame of the luminaire mounted?
A2: The frame is composed of two parts with four arms in cast aluminium fixed to the base flange, configured for a 76mm mounting and secured by three stainless steel screws.
Q3: What makes up the optical block in the AU5591?
A3: The optical block integrates three sealed components: a control gear cover with a lamp holder cap, a conical bowl made of methacrylate, and a one-piece stamped CDG steel reflector painted white with polyester powder.
Q4: What is the ingress protection and shock resistance rating?
A4: The optical block features an IP65 protection degree. When configured with a polycarbonate bowl, it provides a shock energy resistance rating of 2 Joules.
Q5: Which lamp sockets and maximum wattages are compatible?
A5: The system supports E27 and E40 sockets, designed for High-Pressure Sodium (H.P.S) lamps up to a maximum of 250W.
Q6: What finishing options are available for the luminaire?
A6: The luminaire is finished with a protective polyester powder coating, with custom colors available upon request.
