Product Description

Product Overview

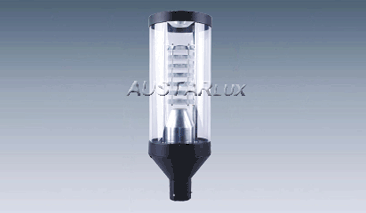

The AU5491 luminaire features a high-performance design composed of 4 key components engineered for durability and efficiency:

THE CAP: Manufactured in casting aluminium, the assembly is securely held to the top of the louver structure.
THE DIFFUSER: Constructed from highly clear polycarbonate material, ensuring excellent light transmittance and durability.
THE BASE FLANGE: Made of cast aluminium, featuring integrated control gear within the base. It is designed for top mounting on a 76mm diameter pole.
THE LOUVER: Made of chrome-plated aluminium to optimize light distribution and reflection.

Technical Specifications

Finish: Coated with high-grade polyester powder. Custom color specifications are available upon request.
Protection Degree: The optical block features an IP65 protection rating, shielding it effectively against dust and water ingress.
Shock Energy: Tested at 2 Joules impact resistance, supported by polycarbonate piping structure.
Insulation Class: Fully compatible with Class I and Class II installation standards.

Product Specifications

ITEM NO.	SOCKET TYPE	COMPATIBLE LAMPS
AU5491	E27 / E40	High Pressure Sodium (H.P.S): 150W max

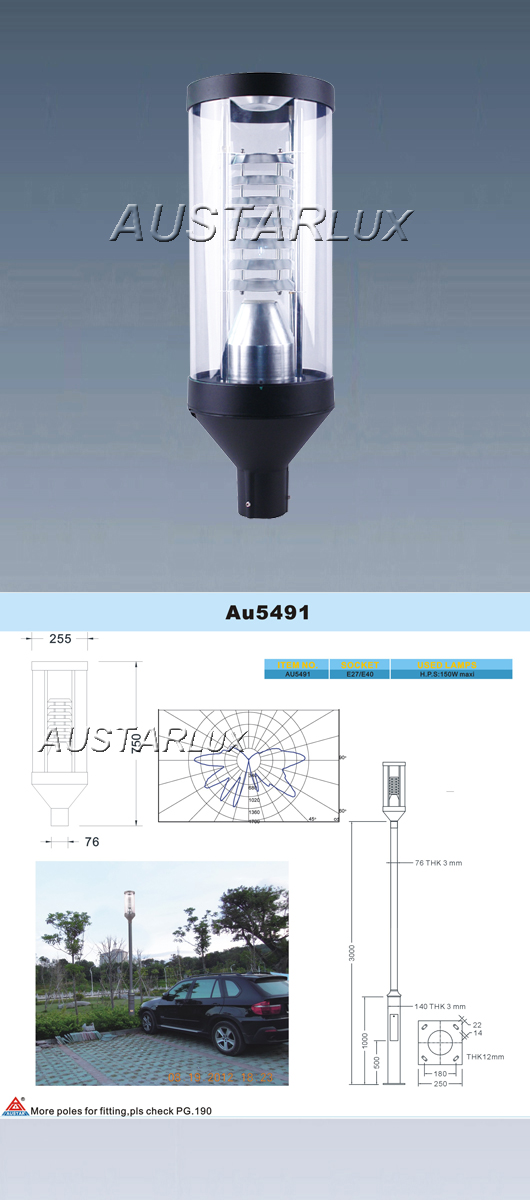

AU5491 Luminaire design and parts schema

Frequently Asked Questions (FAQ)

What are the main components of the AU5491 luminaire?

The AU5491 luminaire consists of four primary parts: a casting aluminium cap, a clear polycarbonate diffuser, a cast aluminium base flange featuring integrated control gear, and a chrome-plated aluminium louver.

What is the mounting standard for the AU5491 base flange?

The cast aluminium base flange is designed for TOP mounting on standard poles or spigots with a diameter of 76mm.

What type of socket and lamps does the AU5491 support?

The AU5491 luminaire is equipped with an E27/E40 socket and supports High-Pressure Sodium (H.P.S) lamps up to a maximum wattage of 150W.

What protection ratings does this luminaire offer?

The luminaire's optical block is IP65 rated, protecting it against dust and moisture. It also features a shock energy resistance rating of 2 Joules due to its robust polycarbonate piping.

Can I order the AU5491 in custom colors?

Yes. The luminaire is finished with polyester powder paint, and custom color options can be provided upon request.
