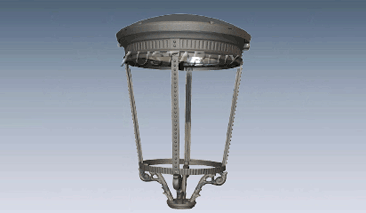

Made of diecasted aluminium. Assembly is held to the CDG steel reflector by means of 1 aluminium steel mounting. Once removed, the dome and control gear are easily attained.
THE FRAME
Made up of 3 parts: a ring of crown in cast aluminium supported by 4 ribs in cast aluminium fixed to the base flange. Mounting for 26mm is held with 2 stainless steel screws.
THE OPTICAL BLOCK
Made up of 3 parts sealed together so as to obtain a high degree of protection.
THE BASE FLANGE
Constructed in cast aluminium with top mounting designed for 26mm.

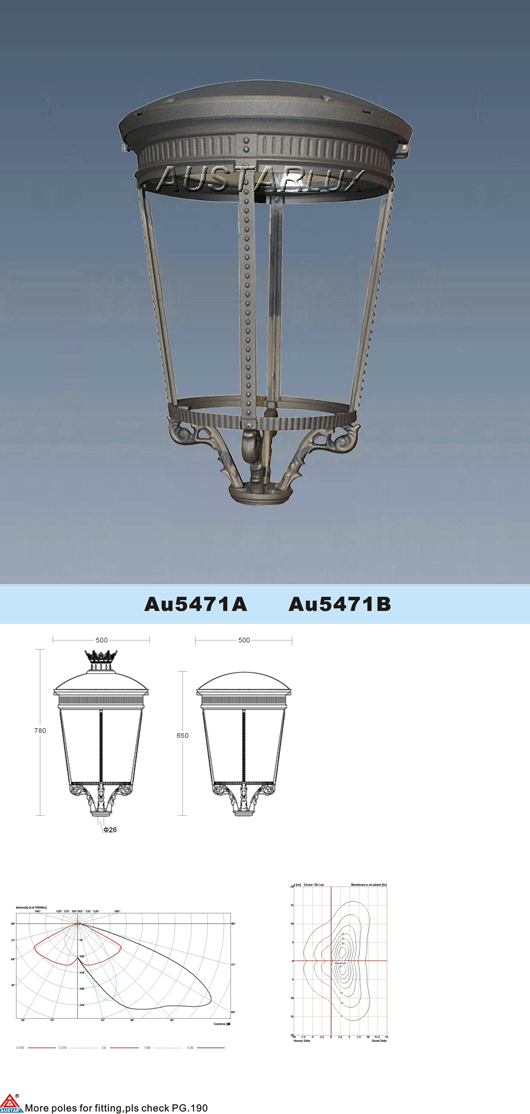

Technical Details & Design
Control Gear Setup
Positioned on the CDG steel sheet. Removing the dome and top crown allows for easy access to the control gear.
Diffuser Specification
Constructed with high-quality frost methacrylate.
Reflector Alternatives
Option A: Reflector made in embossed CDG steel sheet (IP33).
Option B: Reflector in pure aluminium, stamped out in one piece, anodized, and fixed on the CDG steel sheet (IP65). The control gear is arranged around the reflector.
Finishing & Coating
Painted by polyester powder, with custom colors available on request.
Specifications & Ratings
Protection Degree: Optical block IP65
Shock Energy: 2 Joules (polycarbonate diffuse)
Insulation Class: Class I / Class II
Frequently Asked Questions
Q:
What are the main components that make up the AU5471B luminaire?
The AU5471B luminaire is composed of 4 primary parts: THE DOME, THE FRAME, THE OPTICAL BLOCK, and THE BASE FLANGE.
Q:
How is the dome structure designed for easy maintenance?
The dome is made of diecast aluminium and held to the CDG steel reflector by a single aluminium steel mounting. Removing the dome and top crown provides easy access to the control gear.
Q:
What reflector options are available and what are their protection ratings?
You can choose between a reflector made of embossed CDG steel sheet which provides IP33 protection, or a one-piece stamped and anodized pure aluminium reflector fixed on the CDG steel sheet providing IP65 protection.
Q:
What is the shock energy resistance and diffuser material of this luminaire?
The luminaire uses a frost methacrylate diffuser, and achieves a shock energy rating of 2 joules when equipped with a polycarbonate diffuser.
Q:
What are the protection degree and insulation classifications?
The optical block has an IP65 protection rating, and the equipment is available in Class I and Class II classifications.
Q:
Can the exterior finish color be customized?
Yes, the luminaire is painted using polyester powder, and custom colors are available upon request.
