Product Description

Main Components
THE CAP
Made of spun aluminum sheet. Once the cap is removed, the control gear is easily attained for maintenance.
THE FRAME
Consists of 3 parts: a die-cast aluminium ring supported by 3 cast aluminium arms fixed to the base flange. Mounting for a 76mm entry is held securely with 1 row of set stainless steel screws.
OPTICAL BLOCK
Made up of 2 parts sealed together to achieve a high degree of protection. Features a conical bowl in opal or clear quality polycarbonate material.
Key Features
  • Reflector: Embossed aluminium, anodized for optimal performance.
  • Finish: Painted by polyester powder, with colors customizable on request.
Technical Specifications
Protection Degree Optical block IP65
Shock Energy 20 Joules (Tempered Glass)
Electrical Class Class I / Class II

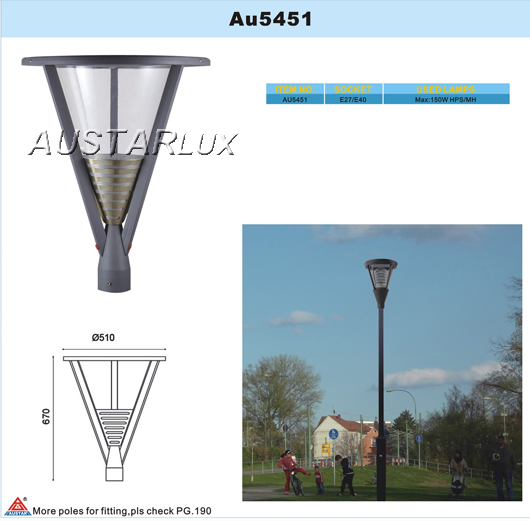

AU5451 Luminaire Component Details
Frequently Asked Questions
Q1: What materials are used to construct the AU5451 luminaire?

A1: The cap is made of spun aluminum sheet, the frame utilizes die-cast and cast aluminum components with stainless steel screws, and the optical block features an opal or clear polycarbonate conical bowl.

Q2: How do you access the control gear in the AU5451?

A2: The control gear is easily accessible. Simply remove the spun aluminum cap to attain the internal control components.

Q3: What mounting options does the frame support?

A3: The frame supports mounting for a 76mm pole, secured firmly using one row of set stainless steel screws.

Q4: What is the ingress protection (IP) rating of the optical block?

A4: The optical block consists of two sealed parts that work together to obtain a high degree of protection, rated at IP65.

Q5: What are the shock resistance and electrical safety specifications?

A5: The luminaire offers a shock energy rating of 20 Joules (with tempered glass) and supports both Class I and Class II electrical safety levels.

Q6: Can the color of the luminaire casing be customized?

A6: Yes, the fixture is finished with protective polyester powder paint, and specific colors can be requested to match your requirements.
