Made of embossed aluminium sheet, thickness: 2mm. Once removed, the cap and lamp are easily attained.
THE FRAME
Made up of 2 parts, featuring 4 arms in cast aluminium fixed to the base flange. Mounting for a 76 held with 3 stainless steel screws, includes the indirect reflector.
THE OPTICAL SYSTEM
Made of parabolic reflector in pure anodized aluminium. It is closed by tempered glass sealed inside a cover plate in cast aluminium, which is in turn fastened to the frame by means of 3 stainless steel bolts. A silicon seal assures the high degree of protection.
Specifications & Finish
Finish
Polyester powder, color on request
Protection Degree
Optical block IP65
Shock Energy
20 Joules
Electrical Class
CLASS I
Frequently Asked Questions

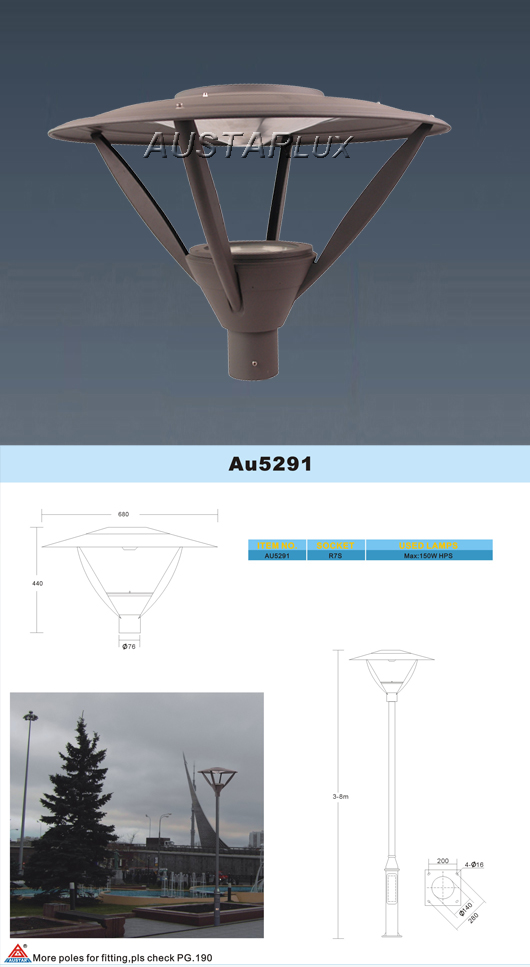

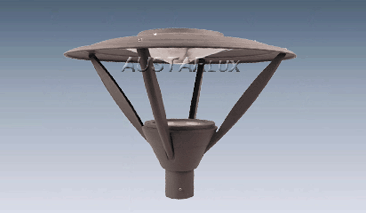

Q1: What are the primary structural components of the AU5291 luminaire?
The AU5291 luminaire consists of three main parts: the cap, the frame, and the optical system.
Q2: How easy is it to access the lamp and maintenance points?
Access is very straightforward. The cap is made of a 2mm thick embossed aluminium sheet, and once it is removed, the cap and lamp can be easily attained.
Q3: What materials are used in the optical system's construction?
The optical system features a parabolic reflector made of pure anodized aluminium. It is closed with tempered glass sealed inside a cast aluminium cover plate, which is secured to the frame with three stainless steel bolts and a protective silicon seal.
Q4: What is the ingress protection (IP) rating and safety class of this luminaire?
The optical block offers a high degree of protection rated at IP65, and the unit complies with Class I electrical safety requirements.
Q5: What are the shock resistance and finish options for the AU5291?
The luminaire features a shock energy rating of 20 Joules. For the finish, it is painted with a durable polyester powder, with colors available upon request.
