Frequently Asked Questions (FAQ)

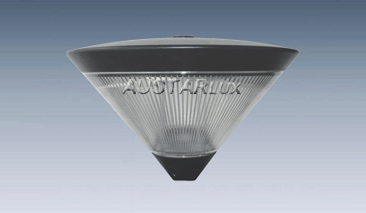

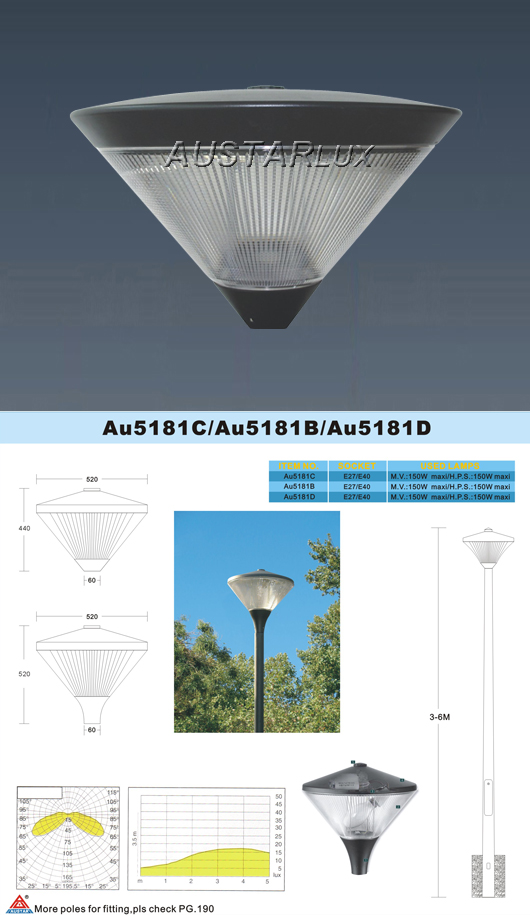

What material is the dome of the luminaire made of?
The dome is made of embossed anodized aluminium to ensure overall protection. The dome assembly is constructed from stainless steel and held to the flange using zinc-coated steel threaded rods.
How is maintenance performed on the dome?
Maintenance access is simple and quick, requiring only the removal of the top part of the dome assembly.
What are the specifications of the diffuser and reflector?
The diffuser is made of frost polycarbonate, and it incorporates a reflector made of pure aluminium stamped out in a single piece.
What are the base material and mounting requirements?
The base is made of die-cast aluminium, which holds the control gear, lamp, and protection cover. It is designed for mounting on a 60mm pole.
What protection level and impact resistance does the luminaire have?
The optical block has an IP55 protection rating, and the polycarbonate bowl offers a high impact resistance rating of 20 Joules.
Are custom colors and Class II insulation options available?
Yes, the finish is painted with polyester powder and custom colors can be requested. The standard unit is Class I, but Class II configuration can be provided upon request.
