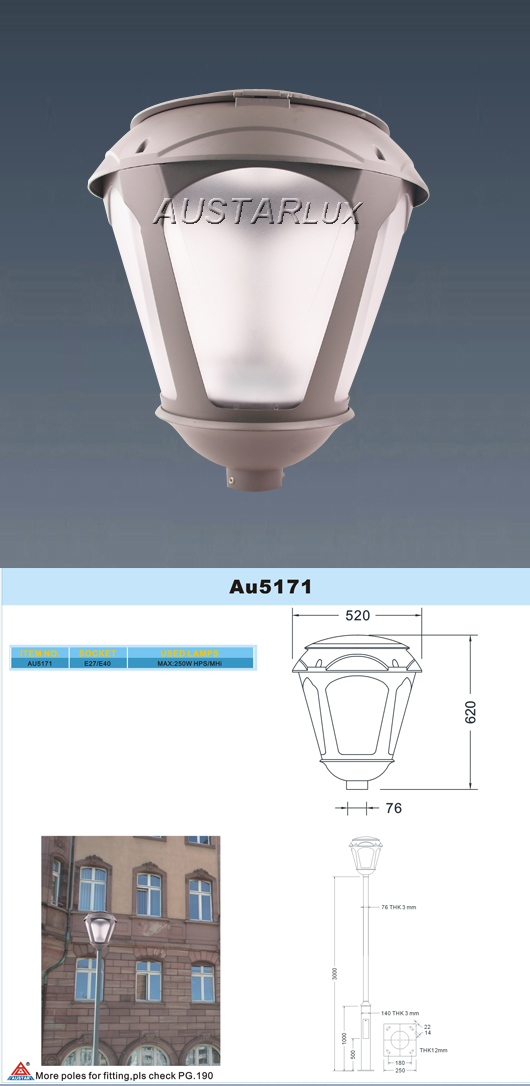

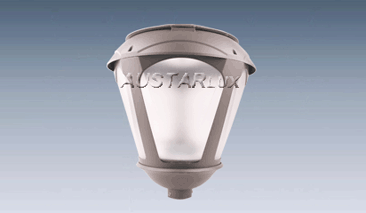

AU5171 luminaire is made of 3 main parts:
■THE CANOPY
Made of aluminium diecasting body fixed into the frame with one stainless steel screws.
■THE FRAME
Made up of 2 parts. 5 libs in cast aluminium fixed to the base flange. Mounting for a 76mm held with 4 stainless steel screws.
■THE OPTICAL BLOCK
Made up of 3 parts sealed together so as to obtain a high degree of protection.
✔
Control Gear: Located in the base. Once the canopy is removed, the control gear is easily attained.
✔
Diffuser: Made of high-quality polycarbonate.
✔
Reflector: Pure aluminium construction, stamped out in one piece and anodized.
✔
Finish: Painted by polyester powder, with color options available on request.
Technical Specifications
| Protection Degree |
Optical block IP54 |
| Shock Energy |
2 Joules |
| Electrical Class |
CLASS I / CLASS II |
Q:
What are the three main components of the AU5171 luminaire?
The AU5171 luminaire consists of the canopy, the frame, and the optical block.
Q:
What materials are used for the frame construction?
The frame is composed of two parts, including 5 ribs in cast aluminium fixed to the base flange, designed for 76mm mounting held by 4 stainless steel screws.
Q:
How do you access the control gear in this luminaire?
The control gear is positioned in the base. It is easily accessible once the canopy is removed.
Q:
What is the IP rating and shock resistance of the AU5171?
The optical block has a protection degree rating of IP54, and the luminaire features a shock energy rating of 2 Joules.
Q:
What safety classes does this luminaire conform to?
The AU5171 luminaire complies with both CLASS I and CLASS II electrical safety standards.
Q:
Can the color of the luminaire be customized?
Yes, the luminaire is painted with polyester powder and custom colors are available upon request.
