Product Description

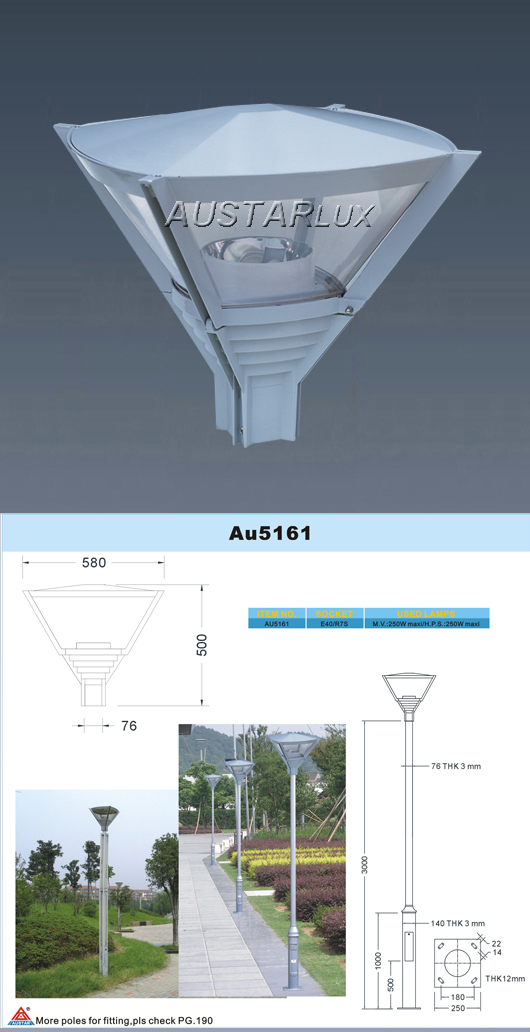

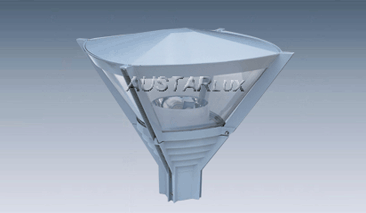

AU5161 luminaire is made of 3 main parts.

THE CANOPY

Made of aluminium casting body into the frame with 4 stainless steel screws.

THE FRAME

Made up of 2 parts, 4 arms in cast aluminium fixed to the base flange. Mounting for a 76mm held with 3 stainless steel screws.

THE OPTICAL BLOCK

Made up of 3 parts sealed together so as to obtain a high degree of protection:

A control gear in the base, once removed the base and control gear are easily attained.
A conical bowl in polycarbonate.
A reflector in pure aluminium, stamped out in one piece, anodized. The control gear is placed under the reflector.

TECHNICAL SPECIFICATIONS

Finish

Painted by polyester powder, color on request

Protection Degree

Optical block IP65

Shock Energy

20Joules (Polycarbonate bowl) / 70Joules (ME RESIST bowl) on request

Electrical Safety

CLASS I / CLASS II

Frequently Asked Questions

What are the main components of the AU5161 luminaire?

The AU5161 luminaire is constructed from 3 main parts: THE CANOPY, THE FRAME, and THE OPTICAL BLOCK.

What protection rating does the optical block offer?

The optical block has a protection degree of IP65, achieved by sealing its 3 internal parts together to ensure high protection.

How is the frame structure designed and mounted?

The frame of the luminaire is made up of 2 parts with 4 arms in cast aluminium fixed to the base flange. It mounts for a 76mm entry and is secured with 3 stainless steel screws.

What are the shock resistance options for the luminaire?

The luminaire provides 20 Joules of shock energy resistance with the standard Polycarbonate bowl, and up to 70 Joules with the ME RESIST bowl upon request.

What electrical safety classes are available?

The AU5161 luminaire is designed to meet both CLASS I and CLASS II electrical safety specifications.

Can the color of the luminaire be customized?

Yes, the luminaire is painted with polyester powder, and custom colors are available upon request.
