Made of 2mm thick spun aluminium sheet. Once the cap is removed, the control gear is easily attained for convenient maintenance.
Consists of 3 parts: a ring in die-cast aluminium supported by 4 arms in cast aluminium fixed to the base flange. Suitable for a 60mm mounting entry, secured with 2 rows of stainless steel set screws.
Sealed together using 3 key elements to achieve superior protection: a control gear cover with lamp holder cap, a conical bowl (in clear or opal polycarbonate), and an anodized spun aluminium reflector.

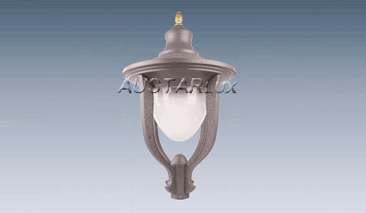

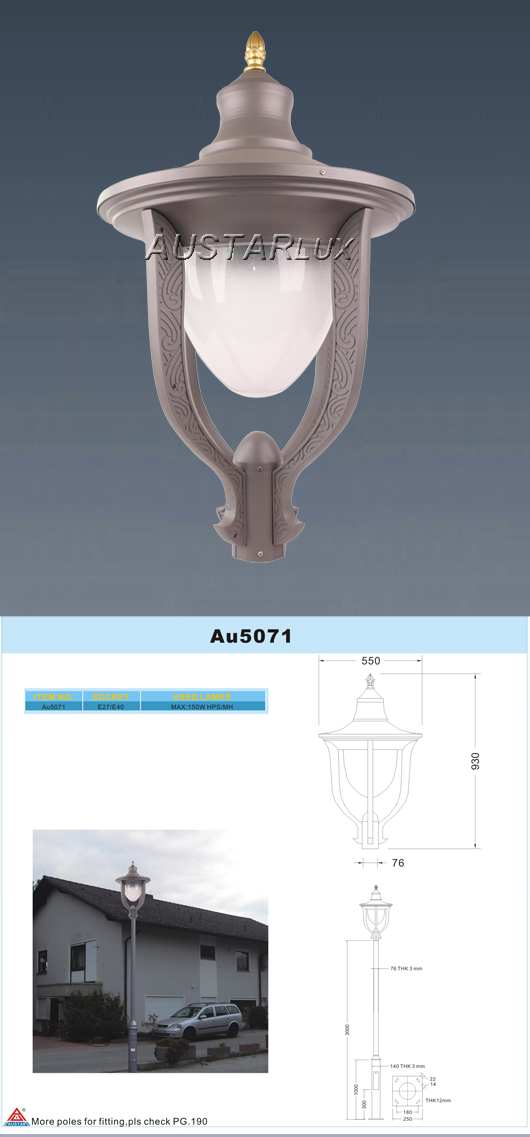

The AU5071 luminaire is constructed in three main sections: a 2mm spun aluminium cap, a multi-part die-cast aluminium frame, and a fully sealed optical block.
The optical block is sealed together to achieve a high degree of protection, carrying an IP65 rating to prevent ingress of dust and moisture.
It features a standard impact rating of 2 Joules using a polycarbonate diffuser, with an optional high-resistance ME RESIST bowl offering up to 70 Joules of protection on request.
The frame features mounting suitable for a 60mm entry, securely held in place by two rows of set stainless steel screws.
The optical block is equipped with a conical bowl, which is available in either high-quality opal or clear polycarbonate material depending on your aesthetic and lighting requirements.
Yes, once the spun aluminium cap is removed, operators can easily access the control gear for simple maintenance and wiring procedures.
