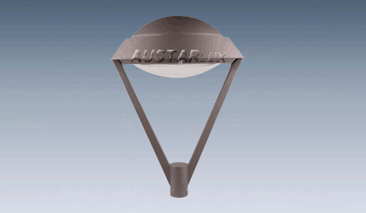

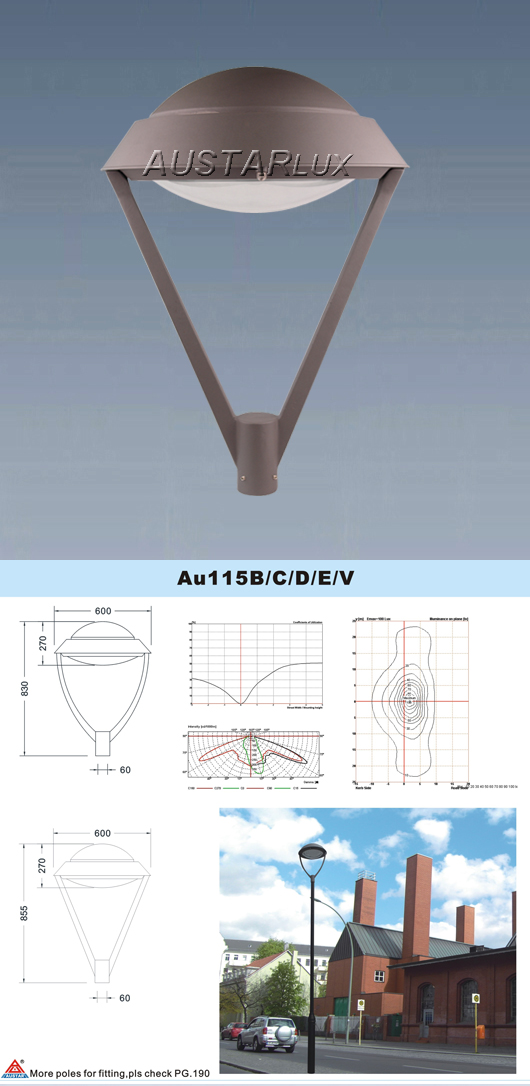

AU115V luminaire is made of 4 key components:
Made of die cast aluminium, insuring the overall protection of the luminaire.
Made of die cast aluminium. The frame is attached by means of a hinge and 1 S/S screw under the body, assuring easy access to the control gear and lamp.
Comprises a pure refined aluminium reflector, stamped out in one piece and polished, attached to the frame. It features another CDG steel reflector fixed to the aluminium reflector. An arc tempered glass or methacrylate diffuser is sealed directly to the CDG steel reflector by a silicone seal, insuring a high degree of protection.
Made of cast aluminium and fixed to the body. The bracket shape can be customized upon request. Painted with polyester powder, with colors available on request.
Technical Specifications
Protection Degree
Optical Block IP65
Shock Energy
20 Joules (Tempered Glass)
Insulation Class
Class I (Class II available on request)
Frequently Asked Questions
Q:
What material is the AU115V luminaire main structure made of?
The top cover, main body, and bracket are all constructed from high-quality die-cast and cast aluminium, ensuring durability and excellent protection.
Q:
How is maintenance access designed for this luminaire?
The frame is secured to the main body via a hinge and a single stainless steel (S/S) screw under the body, which allows for quick, easy access to both the control gear and the lamp.
Q:
What components make up the optic system?
The optic system consists of a polished, single-piece stamped pure refined aluminium reflector attached to the frame, along with a secondary CDG steel reflector.
Q:
What is the ingress protection (IP) rating and impact resistance of the AU115V?
The optical block has a protection degree rating of IP65, and the tempered glass configuration provides a shock energy resistance of up to 20 Joules.
Q:
Can the bracket shape and color finish be customized?
Yes. The bracket shape can be customized to your specific requirements, and the polyester powder finish is available in various colors upon request.
Q:
Which electrical safety classes are supported?
The luminaire is standard-built as Class I, and Class II electrical insulation configuration is available upon request.
