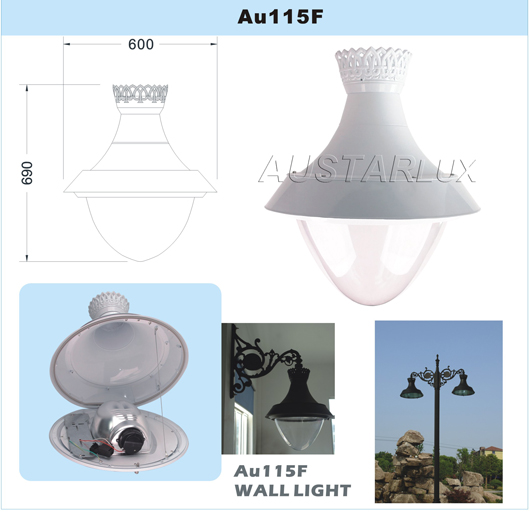

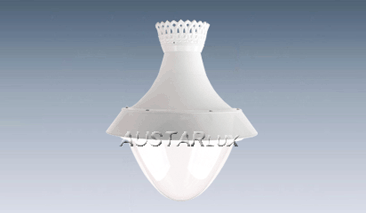

The AU115F luminaire is meticulously engineered and consists of 5 main functional parts designed for durability, protection, and optical efficiency:
Made of high-quality cast aluminium and securely fixed to the top cover.
Manufactured from robust die cast aluminium to ensure complete, overwhole protection of the luminaire.
Constructed of die cast aluminium. The frame is attached by a hinge and secured with one stainless steel (S/S) screw under the body, ensuring easy access to the control gear and lamp.
Comprises a pure, polished, stamped-out refined aluminium reflector attached to the frame, along with a secondary CDG steel reflector. An arc tempered glass or methacrylate diffuser is sealed directly to the CDG steel reflector via a silicone seal, insuring superior protection.
Made of cast aluminium and securely fixed to the main body. The bracket shape can be customized upon request.
| Protection Degree | Optical block IP65 |
|---|---|
| Shock Energy | 20 Joules (Tempered Glass) / 2 Joules (PC bowl) |
| Electrical Class | Class I (Class II available on request) |
| Finish & Coating | Painted with polyester powder, color customizeable on request |
The AU115F luminaire is constructed primarily of high-quality cast and die-cast aluminium for the crown, top cover, body, and bracket, ensuring maximum durability and heat dissipation.
The optical block is certified with an IP65 protection rating, offering outstanding resistance to dust ingress and moisture.
Yes, maintenance is made easy. The body frame features an integrated hinge system secured with a single stainless steel (S/S) screw, permitting fast and convenient access to the lamp and internal control gear.
The tempered glass option provides a high shock energy protection rating of 20 Joules, while the polycarbonate (PC) bowl option offers 2 Joules of impact resistance.
Yes, the luminaire is finished with protective polyester powder paint, with colors customizable on request. Custom bracket shapes can also be designed to suit your specific installation needs.
The luminaire comes standard as Class I insulation, with Class II configuration available upon request.
