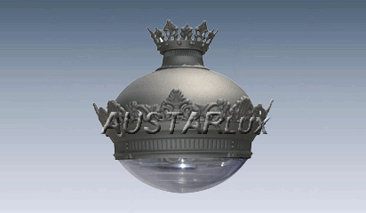

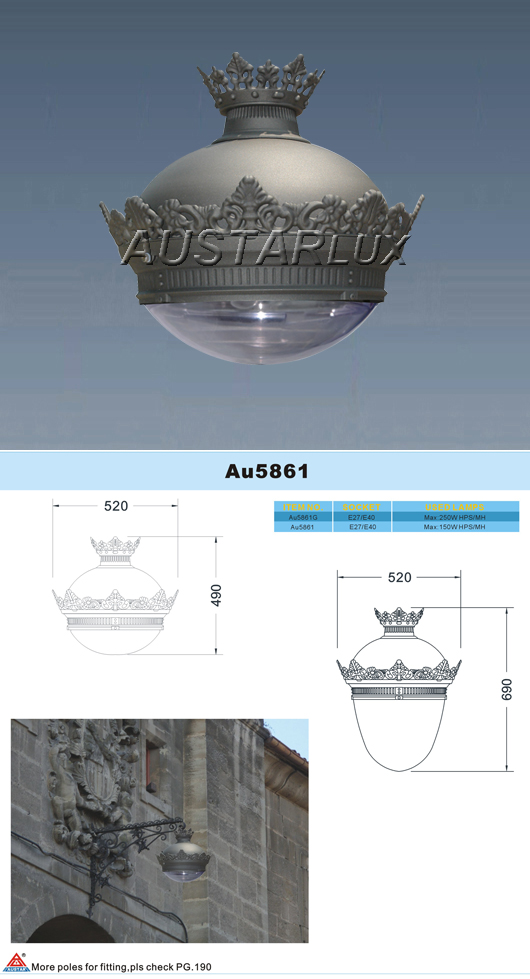

THE CROWN
In cast aluminium, held to the DOME by means of 1 Zinc screw piping. Once removed, the dome and control gear are easily attained.
THE DOME
Made of embossed aluminium sheet.
THE FRAME
Cast aluminium.
THE OPTICAL BLOCK
Composed of a polycarbonate bowl held in the frame, featuring one anodized reflector in the frame.
Technical Specifications
Finish: Painted by polyester powder, color on request.
Mounting: Top mounting with two possibilities:
• Fixed (male)
• Knuckle system (Female) 4/3’’
Protection Degree: Optical block IP65.
Shock Energy: 20 Joules (polycarbonate bowl).
Electrical Class: Class I (Class II available on request).
Frequently Asked Questions
Q: What are the key components of the AU5861 luminaire?
The AU5861 is constructed from four main parts: the cast aluminium crown, the embossed aluminium sheet dome, the cast aluminium frame, and the polycarbonate optical block.
Q: How is the dome accessed for maintenance and control gear adjustment?
The crown is secured to the dome with a single Zinc screw piping. Removing this screw allows easy access to both the dome interior and the control gear.
Q: What options are available for mounting the AU5861?
It features top mounting with two options: a Fixed (male) configuration and a Knuckle system (Female) 4/3’’ configuration.
Q: What is the ingress protection and impact resistance rating?
The optical block has an ingress protection rating of IP65, and the polycarbonate bowl delivers a high shock energy rating of 20 Joules.
Q: Can I request a specific finish color or electrical safety class?
Yes, the luminaire is painted with polyester powder with colors available on request. It conforms to Class I standards, but Class II can also be requested.
