In embossed aluminium or aged copper, insures the protection of the reflector and the control gear.
THE DIFFUSER
Made of clear or opal PC, standard or ogive shape on request.
THE OPTICAL BLOCK
Composed of an anodized aluminium reflector, sealed to a bowl. The lot is attached to the dome by means of a hinge and locked by 4X1/4 turns locks.
TECHNICAL SPECIFICATIONS
Finish
Painted by polyester powder, color on request.
Protection Degree
Optical block IP65
Shock Energy
2 Joules (polycarbonate bowl)
Electrical Class
CLASS I (CLASS II available on request)
Frequently Asked Questions (FAQ)

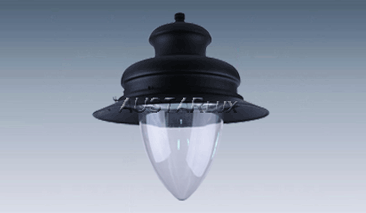

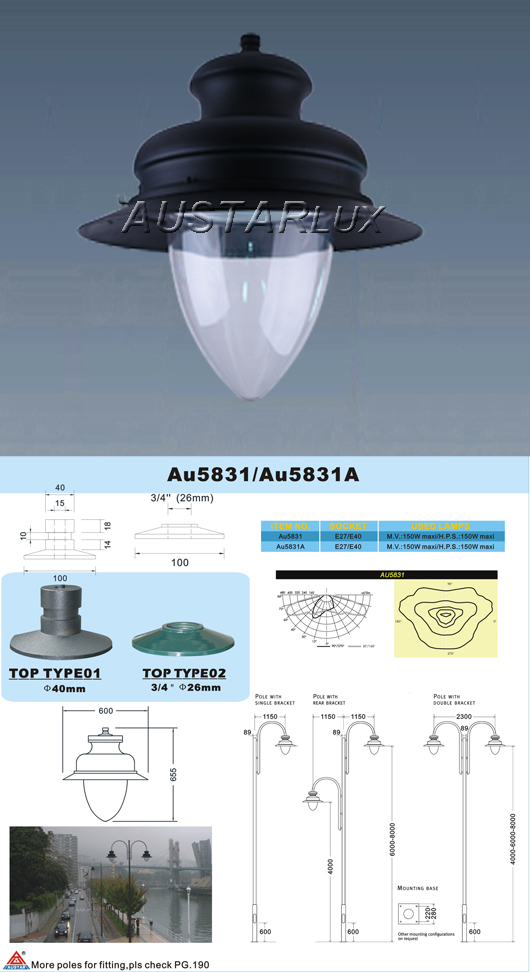

1. What are the main components of the AU5831B luminaire?
The AU5831B luminaire consists of three primary parts: the Dome, the Diffuser, and the Optical Block.
2. What materials are used to construct the Dome?
The dome is manufactured using either embossed aluminium or aged copper, ensuring robust protection for both the internal reflector and the control gear.
3. What options are available for the Diffuser?
The diffuser is made from clear or opal polycarbonate (PC), and is available in either a standard or ogive shape upon request.
4. How is the Optical Block constructed and secured?
The optical block is composed of an anodized aluminium reflector sealed to a bowl. The entire assembly attaches to the dome via a hinge and is secured using four 1/4-turn locks.
5. What are the protection and impact ratings of the AU5831B?
The optical block features an IP65 protection degree, and the polycarbonate bowl provides a shock energy resistance of 2 Joules.
6. What electrical safety classes are available?
The luminaire comes standard with Class I electrical protection, but Class II protection can be provided upon request.
