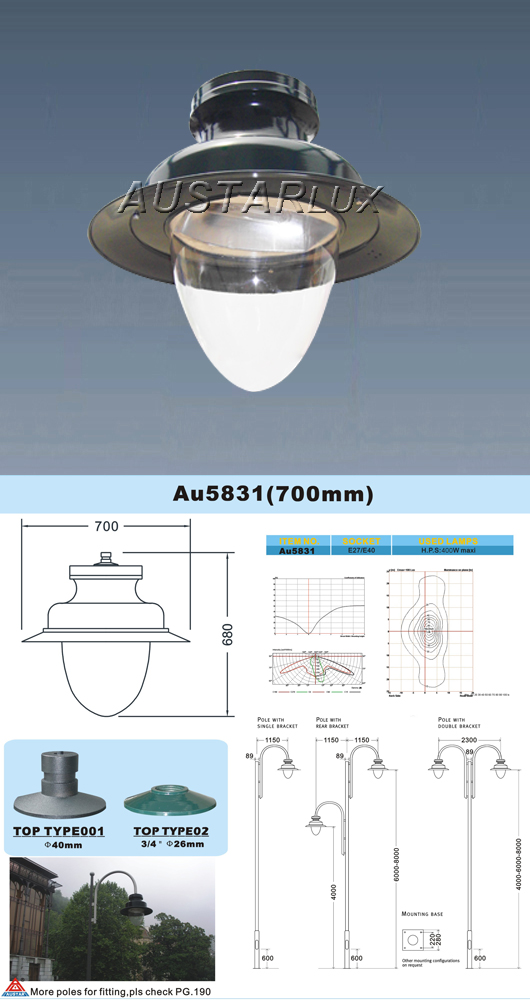

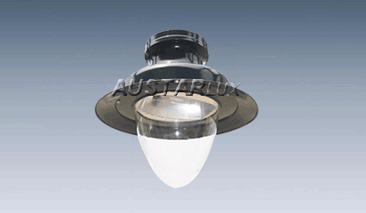

The AU5831 (700mm) luminaire is built with high-quality components and designed for reliability. It is composed of three main architectural parts:

1 The Dome

Made of embossed aluminium or aged copper, ensuring robust protection of the reflector and the control gear.

2 The Diffuser

Constructed from clear or opal methacrylate, available in standard or ogive shape upon request.

3 The Optical Block

Composed of an anodized aluminium reflector sealed to a bowl. The entire assembly is attached to the dome via a hinge and secured with 4 x 1/4 turns locks.

Technical Specifications

Protection Degree

Optical block IP66

Shock Energy

2 Joules (PC bowl)

Electrical Class

Class I (Class II on request)

Finish & Coating

Polyester powder paint (color on request)

Product Selection Table

Item No.	Socket	Used Lamps
AU5831	E27 / E40	H.P.S: 400W max

Frequently Asked Questions

What materials are used to construct the dome of the AU5831 luminaire?

The dome is made of embossed aluminium or aged copper, which protects the reflector and control gear.

What options are available for the diffuser?

The diffuser is made of clear or opal methacrylate. It can be provided in a standard or ogive shape upon request.

What is the ingress protection (IP) rating for this luminaire?

The optical block of the AU5831 luminaire features a protection degree rating of IP66.

What is the impact resistance capability of the bowl?

With the PC bowl option, the luminaire provides a shock energy resistance of 2 Joules.

Which light sources and socket bases are compatible with this fixture?

The fixture supports E27 and E40 socket bases and is compatible with High-Pressure Sodium (H.P.S) lamps up to a maximum wattage of 400W.

Are custom colors and class configurations available?

Yes, the luminaire is painted with polyester powder with colors available on request. It features Class I insulation as standard, with Class II options available on request.
