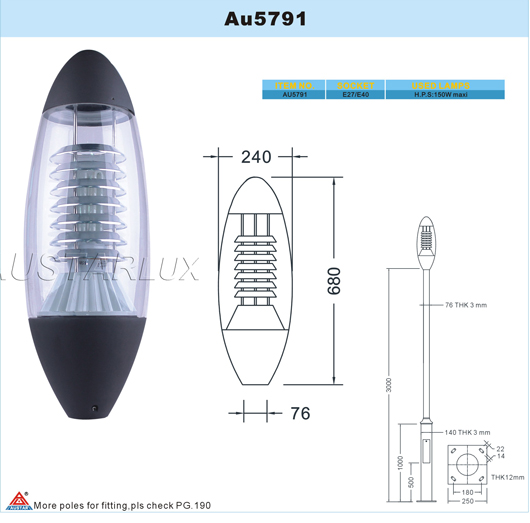

Made of casting aluminium, assembly is held to the flange base by means of 3 zinc mountings.
The Optical Block
Made up of 3 parts sealed together so as to obtain a high degree of protection.
Control Gear Access
A control gear in the base, once removed the louver and the control gear are easily attained.
Bowl & Louver
A conical bowl in clear polycarbonate. The louver in die casting aluminium, the control gear is placed under the reflector.
Base Flange & Finish
The base flange in cast aluminium, top mounting for 60mm. Painted by polyester powder, color on request.
Technical Specifications
Protection Degree: IP55
Shock Energy: 2 Joules (polycarbonate bowl)
Class I / Class II
Ordering Information
Item No.
Socket
Used Lamps
AU5791A
E27
H.P.S: 150W maxi
Frequently Asked Questions
Q:
What are the main components of the AU5791 luminaire?
The AU5791 luminaire is constructed in three main parts: the casting aluminium dome (secured to the flange base with three zinc mountings), a sealed three-part optical block, and a cast aluminium base flange.
Q:
What Ingress Protection (IP) rating does this luminaire have?
The optical block is sealed to achieve an IP55 protection degree, offering excellent resistance against dust and water ingress.
Q:
What is the impact resistance rating of the bowl?
The conical bowl is made of clear polycarbonate, offering a shock energy resistance rating of 2 joules.
Q:
How is the control gear accessed for maintenance?
The control gear is located in the base under the reflector. It can be easily accessed and maintained once the louver is removed.
Q:
What mounting dimensions does the AU5791 support?
The base flange is designed for top mounting on a standard 60mm diameter pole or bracket interface.
Q:
What lamp types and sockets are compatible with model AU5791A?
The AU5791A model features an E27 socket and is designed to run High-Pressure Sodium (H.P.S.) lamps up to a maximum wattage of 150W.
