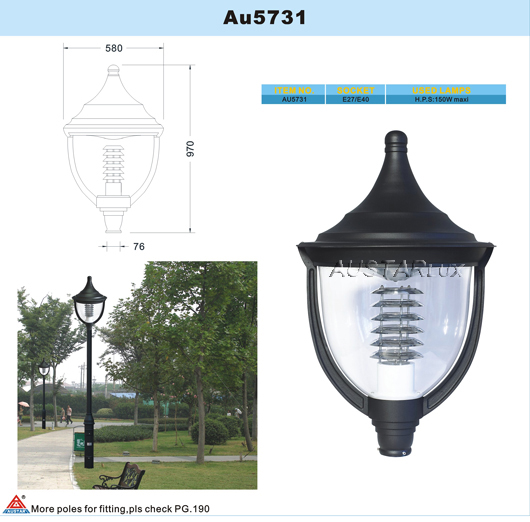

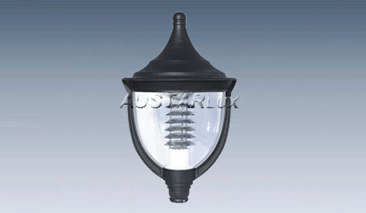

The AU5731 luminaire is a high-performance lighting solution engineered with a robust three-part structural design, ensuring optimal durability, easy maintenance, and superior optical output for demanding outdoor environments.
Made of high-quality spun aluminium sheet. Once removed, both the cap and control gear can be easily accessed and maintained.
Composed of 2 key parts: 2 cast aluminium ribs fixed directly to the post adaptor. Designed for 76mm mounting and secured tightly with 3 stainless steel screws.
Constructed of 3 sealed parts for advanced protection. Includes a control gear on the aluminium reflector, a methacrylate control bowl, and anodized louvers.
| Finish & Painting | Painted by polyester powder, color options available on request. |
| Protection Degree | Optical block rated at IP65 protection. |
| Shock Energy | 2 Joules (tested with methacrylate bowl). |
| Electrical Class | CLASS I (Standard) / CLASS II available on request. |
The cap of the AU5731 luminaire is manufactured from high-durability spun aluminium sheet. It is designed to be easily removed for quick maintenance access to the control gear.
The frame consists of two cast aluminium ribs fixed securely to the post adaptor. It features a mounting size of 76mm and is held firmly in place with three robust stainless steel screws.
The optical block is composed of three sealed parts to ensure top-tier protection: a control gear placed on the aluminium reflector, a high-durability methacrylate control bowl, and anodized louvers.
The sealed optical block features an IP65 protection degree rating. Additionally, the methacrylate bowl is tested to withstand a shock energy impact level of 2 Joules.
Yes, the luminaire is painted with premium polyester powder, and custom colors are available upon request. While Class I electrical protection is standard, Class II configuration can also be provided on request.
