Frequently Asked Questions

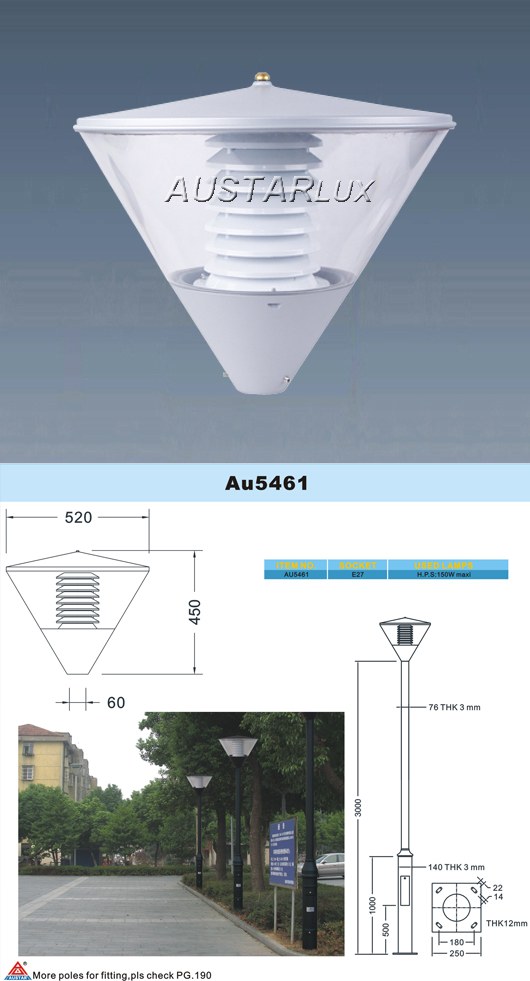

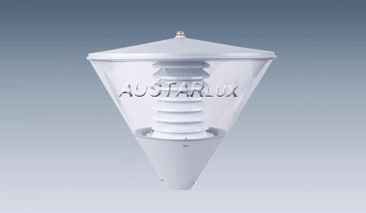

QHow many main parts make up the AU5461 luminaire?
The AU5461 luminaire is composed of 3 main parts: THE DOME, THE OPTICAL BLOCK, and THE BASE FLANGE.
QWhat material is used for the dome of the luminaire?
The dome is made of an embossed aluminium sheet. The assembly is held to the top of the aluminium die-casting louver using one aluminium steel mounting.
QWhat is the protection degree rating of the AU5461?
The optical block is sealed using 3 parts to achieve a high degree of protection, providing a rated protection level of IP54.
QWhat is the shock energy capacity of the polycarbonate bowl?
The conical bowl is made of clear polycarbonate and features a shock energy rating of 2 joules.
QWhat mounting specifications apply to the base flange?
The base flange is constructed of cast aluminium and is suitable for top mounting with a diameter of 60mm.
QHow is the luminaire painted and what are the safety classes?
The luminaire is painted with polyester powder (color is available on request). It satisfies safety requirements for both CLASS I and CLASS II electrical applications.
