Made of die-casting aluminium, insuring the overall protection of the luminaire.

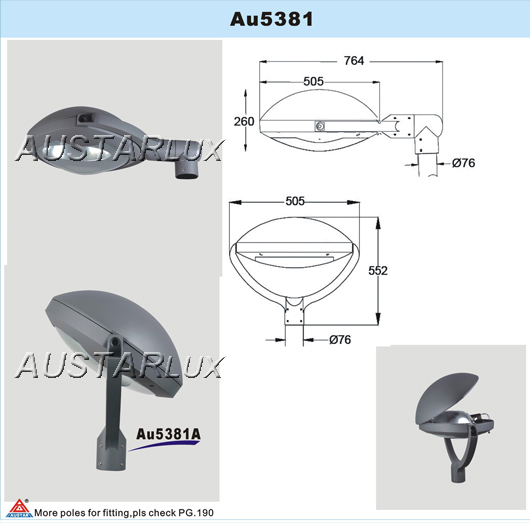

THE BODY
Made of die-cast aluminium. The frame is attached by means of a hinge and 1 S/S screw under the body, assuring easy access to the control gear and lamp.
THE OPTIC SYSTEM
Comprises a pure refined aluminium reflector, stamped out in one piece and polished, which is attached to the frame. A clear tempered glass is sealed directly to the reflector by means of a silicone seal insuring a high degree of protection.
THE ADAPTOR
Made of die-cast aluminium, it can change angle as per your request.
TECHNICAL SPECIFICATIONS
Protection Degree
Optical Block IP65
Shock Energy
20 Joules (Tempered Glass)
Electrical Class
CLASS I
Electrical Class
CLASS II
Finish: Painted by polyester powder, color available on request.
Frequently Asked Questions (FAQ)
Q
What material is used for the top cover and body of the AU5381A luminaire?
Both the top cover and the main body are constructed from high-quality die-cast aluminium, which ensures long-lasting durability and overall protection for the lighting fixture.
Q
How is the optical system protected against dust and moisture?
The optical system utilizes a clear tempered glass that is sealed directly to the refined aluminium reflector using a high-grade silicone seal. This provides a high degree of protection, reaching an IP65 rating for the optical block.
Q
Is it easy to access the internal lamp and control gear?
Yes, the design features a frame attached by a hinge and secured with one stainless steel (S/S) screw under the body, allowing for quick, easy, and convenient access for maintenance.
Q
Can the mounting angle of the luminaire be adjusted?
Yes, the adaptor is made of die-cast aluminium and is designed to allow angle modifications according to installation requirements.
Q
What are the impact resistance and electrical safety classes for this luminaire?
The AU5381A luminaire features a shock energy rating of 20 Joules (tempered glass protection) and complies with both Class I and Class II electrical safety requirements.
Q
What finish options are available for the luminaire?
The luminaire is coated with a durable polyester powder paint. The standard finish is available, and custom colors can be provided upon request.
