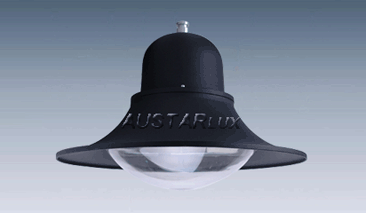

AU5361 Luminaire System Overview
Part 1
THE DOME
Made of cast aluminium. The dome is secured to the cap by 3 stainless steel screws. Removing the dome allows easy access to the control gear.
Part 2
THE CAP
Constructed from high-durability cast aluminium.
Part 3
THE DIFFUSER
Made of opal or clear polycarbonate. Finished with polyester powder paint, with colors available upon request.
Part 4
THE REFLECTOR
Crafted from embossed, anodized aluminium. Painted by polyester powder, color customizable on request.

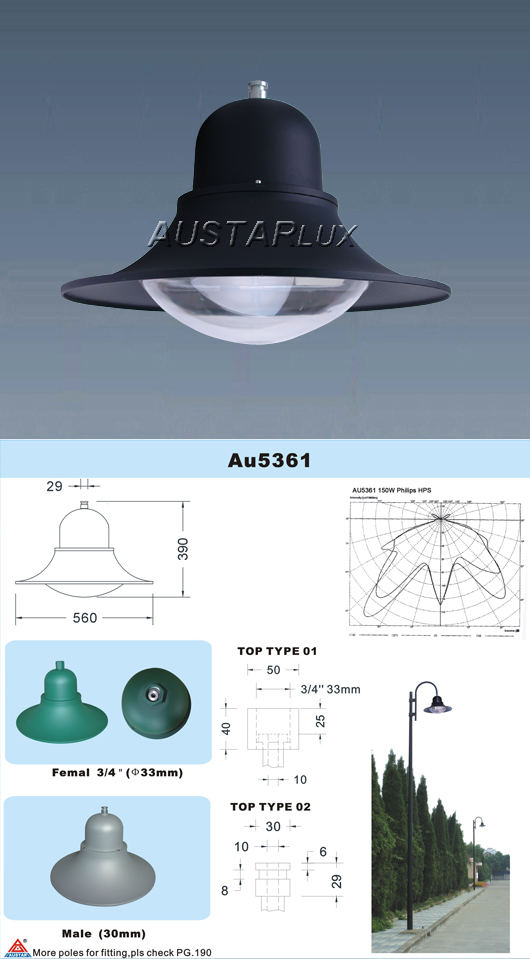

Mounting Options
✓
Fixed (Male) mounting top possibility
✓
Knuckle (Female) mounting top possibility
Technical Specifications
Protection Degree
Optical Block IP55
Diffuser Type
Polycarbonate Bowl
Electrical Insulation
CLASS I & CLASS II
Frequently Asked Questions
What are the main component parts of the AU5361 luminaire?
The AU5361 luminaire consists of four primary parts: the cast aluminium dome, the cast aluminium cap, the polycarbonate diffuser, and the embossed anodized aluminium reflector.
How do you access the control gear in the AU5361 luminaire?
The dome is secured to the cap using 3 stainless steel screws. Once these screws are removed, the dome can be taken off to easily access the interior control gear.
What choices are available for the diffuser options?
The diffuser is made of high-quality polycarbonate and is available in either an opal or a clear option. It is finished with polyester powder coating in colors specified by request.
What top mounting configurations are supported?
The luminaire offers two top mounting configurations: a Fixed (Male) option and a Knuckle (Female) option.
What is the IP protection rating and impact resistance class?
The luminaire features an IP55 protection degree for its optical block. It also offers high impact resistance with a shock energy rating of 20 Joules provided by its polycarbonate bowl.
Which electrical safety classes does the AU5361 satisfy?
The AU5361 luminaire is designed to meet both Class I and Class II electrical safety insulation standards.
