Product Description

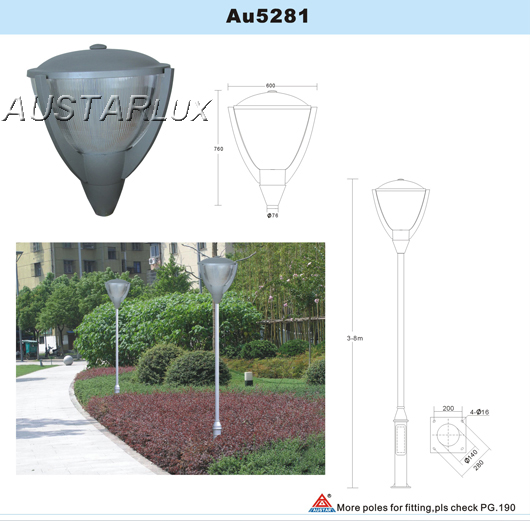

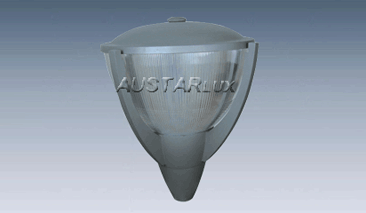

AU5281 Luminaire Specifications

Structure & Components

THE CAP: Made of 2mm thick embossed aluminium sheet. The cap and control gear are easily accessible once removed.
THE FRAME: Composed of 2 parts, featuring 4 cast aluminium arms fixed to the base flange. Mounting for a 76 size, secured with 3 stainless steel screws.
THE OPTICAL BLOCK: Composed of 3 sealed parts designed to achieve a high degree of protection, including:
- A control gear cover equipped with a lamp holder cap.
- A conical bowl made of durable polycarbonate.
- A single-piece stamped CDG steel reflector, finished in white polyester powder coating.

Technical Specifications

Finish: Polyester powder paint (color available on request)

Protection Degree: Optical block IP65

Shock Energy: 20 Joules (polycarbonate bowl) / 70 Joules (ME RESIST bowl on request)

Electrical Class: Class I (Class II available on request)

Frequently Asked Questions

Q1: What materials are used to construct the cap and frame of the AU5281 luminaire?

A1: The cap is constructed from a 2mm thick embossed aluminium sheet, while the frame consists of 2 parts with 4 cast aluminium arms secured to the base flange.

Q2: How easy is it to perform maintenance on the control gear?

A2: Maintenance is highly accessible. Once the embossed aluminium cap is removed, you can easily reach both the cap components and the control gear.

Q3: What components make up the sealed optical block?

A3: The optical block consists of three parts sealed together: a control gear cover with a lamp holder cap, a conical polycarbonate bowl, and a single-piece stamped CDG steel reflector painted white with polyester powder.

Q4: What is the ingress protection (IP) rating of the optical block?

A4: The optical block of the AU5281 luminaire is rated IP65, providing high-level protection against dust and water ingress.

Q5: What are the shock resistance capabilities of this luminaire?

A5: The standard configuration with a polycarbonate bowl supports a shock energy of 20 Joules. A high-resistance ME RESIST bowl supporting 70 Joules is also available upon request.

Q6: Are there options for electrical classification and paint colors?

A6: Yes. The luminaire is standard Class I, with Class II available on request. It is finished with polyester powder paint, and custom colors can be provided on request.
