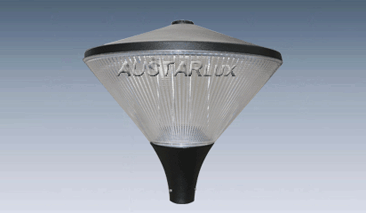

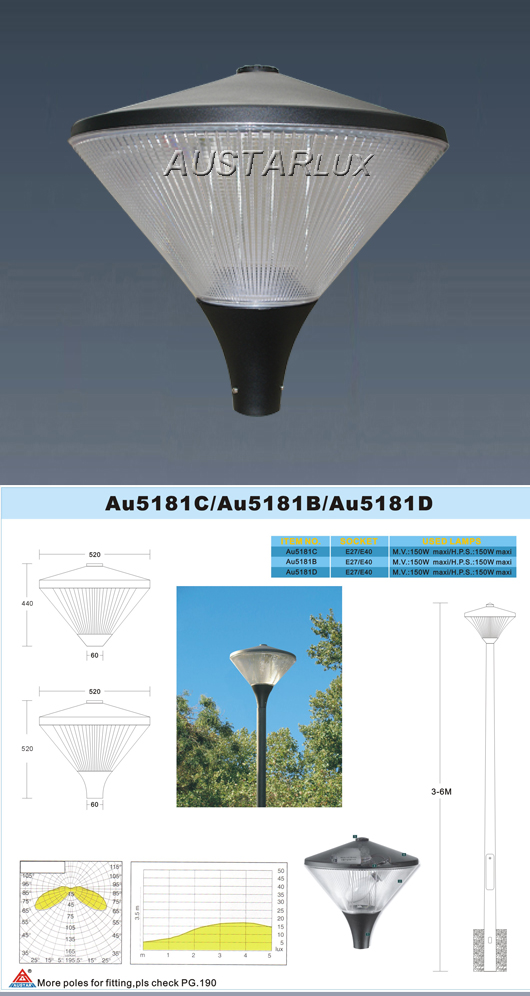

AU5181B,C luminaire is constructed with high-quality materials and designed for exceptional durability and performance. The luminaire is made of 3 main parts:
Main Components
THE DOME
Made of embossed anodized aluminium which ensures the overall protection of the luminaire. The dome assembly in stainless steel is held to the flange by means of zinc-coated steel threaded rods. Access for maintenance is easily achieved by removing the top part of the dome assembly.
THE DIFFUSER
Made of frost polycarbonate. Features a high-efficiency reflector in pure aluminium stamped out in one single piece.
THE BASE
Made of robust die-cast aluminium onto which the control gear, lamp, and its protection cover are fixed. Provides mounting compatibility for a 60mm entry.
Specifications & Options
- Finish: Painted by polyester powder, color available on request.
- Protection Degree: Optical block IP55.
- Shock Energy: 20 Joules (polycarbonate bowl).
- Electrical Safety: Class I standard, Class II option available on request.
Frequently Asked Questions
What materials are used to construct the dome of the AU5181B,C luminaire?
The dome is made of embossed anodized aluminium to ensure overall protection. Its assembly uses stainless steel and is secured to the flange via zinc-coated steel threaded rods.
How is maintenance performed on this luminaire?
Maintenance access is straightforward and easily achieved by removing the top section of the dome assembly.
What are the specifications of the diffuser and reflector?
The diffuser is made of frost polycarbonate, and it is paired with a reflector stamped out of one single piece of pure aluminium.
What features does the base of the luminaire offer?
The base is made of die-cast aluminium and serves as the mounting point for the control gear, lamp, and protection cover. It is compatible with 60mm mounting.
What are the protection ratings and shock resistance values?
The luminaire features an IP55 protection degree for the optical block and provides a high shock energy rating of 20 Joules with its polycarbonate bowl.
Can I customize the color and insulation class of this luminaire?
Yes, the body is painted with polyester powder with colors available on request. Furthermore, while Class I is standard, Class II electrical safety can also be provided on request.
