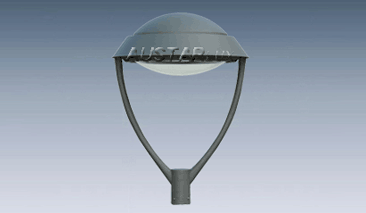

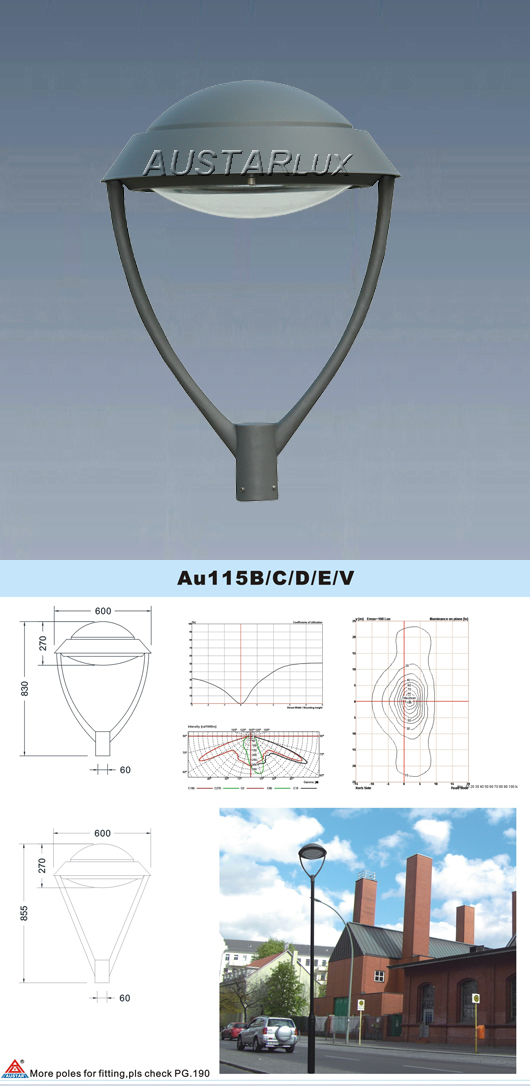

AU115B Luminaire Component Structure
The AU115B luminaire is precisely engineered and constructed of 4 main functional parts:
Made of die cast aluminium, which insures the overall protection of the luminaire.
Made of die cast aluminium. The frame is attached by means of a hinge and 1 S/S screw under the body, assuring easy access to the control gear and lamp.
It comprises a pure refined aluminium reflector, stamped out in one piece and polished which is attached to the frame, and another CDG steel reflector fixed with aluminium reflector. An arc tempered glass or methacrylate diffuse is sealed directly to the CDG steel reflector by means of a silicone seal insuring a high degree of protection.
Made of cast aluminium fixed to the BODY. The bracket shape can be customized on your request. Painted by polyester powder, color on request.
What materials are used to construct the AU115B luminaire's top cover and body?
Both the top cover and the body of the AU115B luminaire are made of high-quality die cast aluminium to ensure excellent protection and durability.
Is the AU115B luminaire easy to maintain?
Yes. The frame is attached using a hinge and a single stainless steel (S/S) screw under the body, which allows for quick and easy access to both the control gear and the lamp during servicing.
What features make up the AU115B optic system?
The optic system consists of a polished, one-piece stamped pure refined aluminium reflector attached to the frame, along with another CDG steel reflector. It is sealed with a silicone seal and features an arc tempered glass or methacrylate diffuser.
What is the IP protection rating of the optical block?
The optical block of the AU115B luminaire features a highly secure IP65 protection degree rating to guard against dust and water ingress.
What level of impact protection does the tempered glass offer?
The tempered glass diffuser is built to withstand high levels of impact, offering a shock energy rating of 20 Joules.
Can the bracket shape and color finish be customized?
Yes. The bracket is made of cast aluminium and its shape can be adjusted on request. Additionally, the unit is painted with polyester powder, with colors available upon request.
