Product Features & Composition

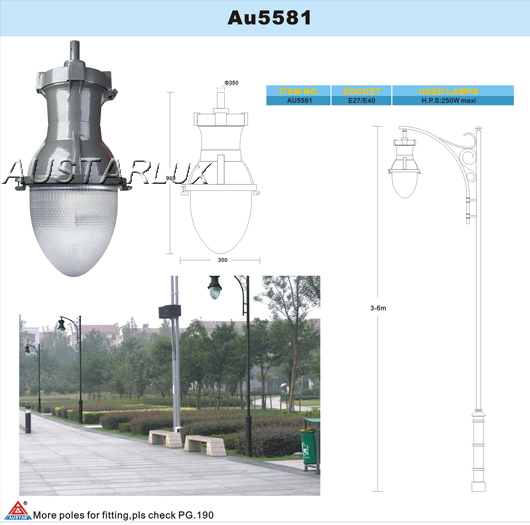

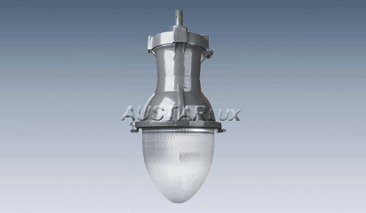

The AU5581 luminaire is engineered with premium materials for maximum durability and efficiency. The system is composed of three primary parts:
-
THE DOME: Manufactured from high-grade aluminium casting. Once the cap is removed, the control gear is easily accessible.
-
THE BODY: Crafted from robust aluminium casting for long-term structural integrity.
-
THE OPTICAL SYSTEM: Features a pure refined aluminium reflector, stamped out in one single piece and polished, securely attached to the frame.
-
CONTROL GEAR COVER: Includes a lamp holder cap made of CDG steel sheet, stamped in one piece, and finished in a white polyester powder coating.
-
CONICAL BOWL: Constructed from highly durable polycarbonate.
-
FINISH: Painted using premium polyester powder, with colors available on request.
Frequently Asked Questions
What materials are used in the construction of the AU5581?
The dome and body are made from cast aluminium, the reflector is pure refined aluminium, the control gear cover is made of CDG steel sheet, and the conical bowl is constructed from impact-resistant polycarbonate.
Is the control gear easily accessible for maintenance?
Yes, the dome is designed so that once you remove the cap, the control gear can be easily reached and serviced.
What is the IP rating and impact resistance of this luminaire?
The optical block has an IP65 protection rating, protecting it against dust and water. The polycarbonate bowl has a shock energy rating of 2 Joules.
Which lamp types and wattages are compatible with the AU5581?
It is compatible with High-Pressure Sodium (H.P.S) lamps up to a maximum wattage of 250W, utilizing either E27 or E40 sockets.
Can I request a Class II insulation version or custom colors?
Yes, while Class I insulation is standard, Class II is available upon request. Custom colors for the polyester powder paint finish are also available on request.
