Made of die casting aluminium, insuring the overall protection of the luminaire.
The Body
Made of die-cast aluminium. The frame is attached by means of a hinge and 1 S/S screw under the body, assuring easy access to the control gear and lamp.
The Optic System
Comprises a pure refined aluminium reflector, stamped out in one piece and polished, attached to the frame. A clear tempered glass is sealed directly to the reflector by means of a silicone seal insuring a high degree of protection.
The Adaptor
Made of die-cast aluminium, it can change angle as per your request.
Technical Specifications
Protection DegreeOptical block IP65
Shock Energy20 Joules (tempered glass)
Safety ClassClass I / Class II
FinishingPainted by polyester powder, color on request
Frequently Asked Questions
What are the main components of the AU5381 luminaire?

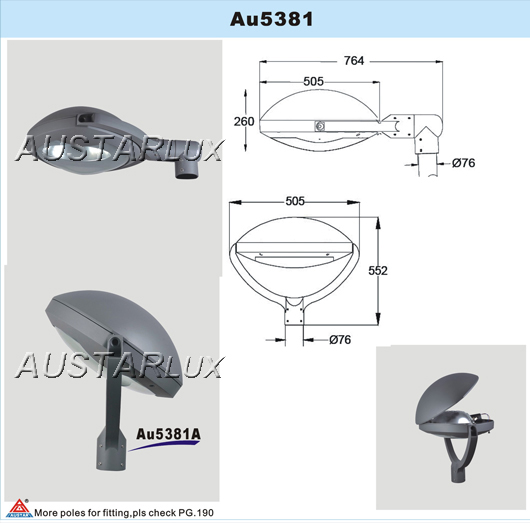

The AU5381 luminaire consists of four primary parts: the top cover, the main body, the optic system, and the adjustable adaptor.
What material is used for the luminaire structure?
High-quality die-cast aluminium is used for the top cover, body, and adaptor, ensuring durable housing and reliable structural protection.
What is the protection level of the optical block?
The optical block has an IP65 protection degree rating. It utilizes a silicone seal to bond a clear tempered glass directly to the refined aluminium reflector.
How much shock energy can the glass lens withstand?
The tempered glass of the optical system is rated to withstand a shock energy impact of up to 20 Joules.
Is the color of the luminaire customizable?
Yes, the luminaire is finished with a protective polyester powder coating, and the specific color can be customized upon request.
Is maintenance access convenient?
Yes, the frame is designed with a hinge and one stainless steel (S/S) screw under the body, which allows easy access to both the control gear and the lamp.
