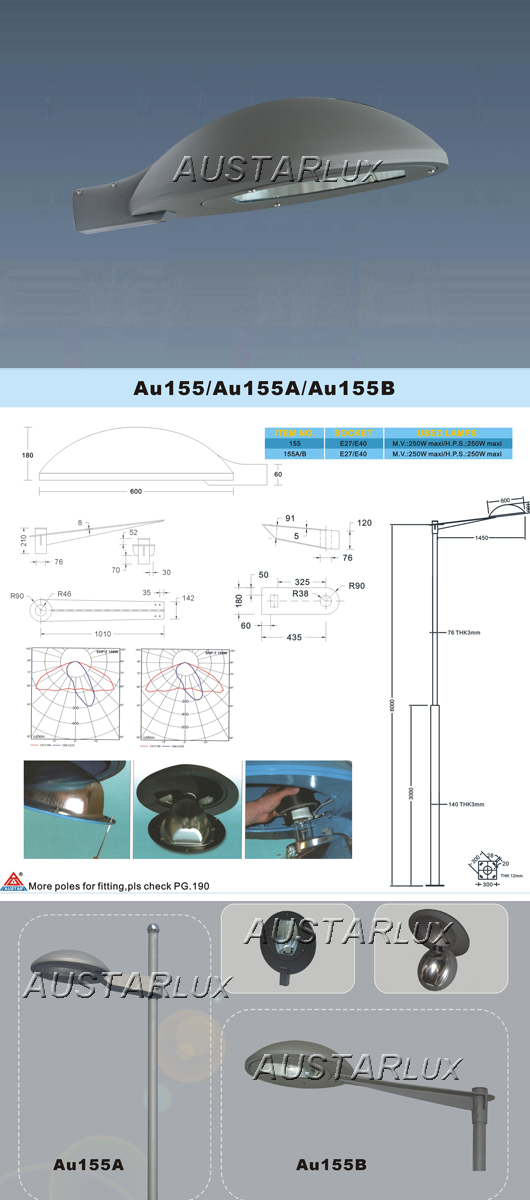

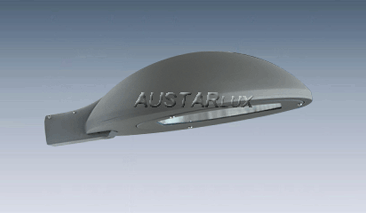

AU155 luminaire is made of 4 parts:
THE DOME
Made of embossed aluminium, insures the overwhole protection of the luminaire.
THE BODY
Made of die cast aluminium. The frame is attached by means of a hinge and 3 S/S screw, under the body, assuring an easy access to the control gear and lamp.
THE OPTIC SYSTEM
It comprises a pure refined aluminium reflector, stamped out in one piece and polished which is attached to the frame. A flat clear tempered glass is sealed directly to the reflector by means of a silicone seal insuring a high degree of protection.
THE BRACKET
Made of cast aluminium, have 3 types for your choice.
Painted by polyester powder, color on request.
20 Joules (Tempered Glass)
CLASS I (CLASS II on request)
Frequently Asked Questions
Q: What materials are used to construct the AU155 luminaire?
The AU155 luminaire features a dome made of embossed aluminium, a body and bracket made of cast aluminium, and an optic system using a pure refined aluminium reflector and a flat clear tempered glass.
Q: What is the protection rating (IP rating) of the AU155 luminaire?
The optical block of the AU155 luminaire has a protection degree rating of IP65.
Q: How impact-resistant is the optical glass?
The flat clear tempered glass used in the optic system has a high shock energy resistance of 20 Joules.
Q: Is maintenance and lamp replacement easy?
Yes. The cast aluminium body features a frame attached by a hinge and secured with 3 S/S screws under the body, which guarantees easy access to the lamp and control gear.
Q: What customization options are available for the bracket and color?
The cast aluminium bracket is available in 3 different types for selection, and the luminaire's polyester powder-painted body can be customized in various colors upon request.
Q: What electrical safety classes does the AU155 luminaire support?
The AU155 luminaire is built to CLASS I standards, and a CLASS II configuration is available on request.
