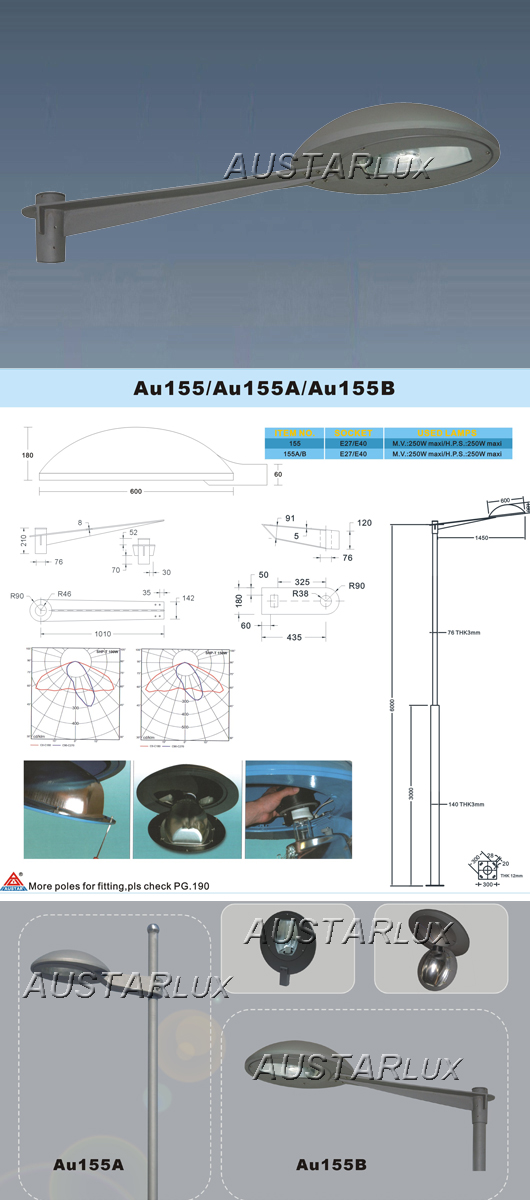

AU155B Component & Technical Specification
The Dome
Made of spun aluminium sheet.
The Flat Bottom Cover
Made of die cast aluminium. The frame is attached by means of a hinge and 3 S/S screws under the body, assuring an easy access to the control gear and lamp.
The Optic System
Comprises a pure refined aluminium reflector, stamped out in one piece and polished which is attached to the frame. A flat clear tempered glass is sealed directly to the reflector by means of a silicone seal insuring a high degree of protection.
The Bracket
Made of cast aluminium.
Finish
Painted by polyester powder, color on request
Protection Degree
Optical block IP65
Shock Energy
20 Joules (Tempered Glass)
Safety Class
CLASS I (CLASS II on request)
Frequently Asked Questions
Q
What materials are used for the main structure of the AU155B?
The AU155B is constructed using high-quality aluminium: the dome is made of spun aluminium sheet, the bracket is cast aluminium, and the flat bottom cover is made of die cast aluminium.
Q
How is maintenance access designed for the control gear and lamp?
Access is highly user-friendly. The bottom frame is attached using a hinge mechanism along with 3 stainless steel (S/S) screws located under the main body, ensuring quick and easy entry to the inner components.
Q
What are the key features of the optical system?
It features a one-piece stamped and polished pure refined aluminium reflector. A flat clear tempered glass is directly sealed to this reflector using a robust silicone seal to achieve maximum sealing efficiency.
Q
What protection ratings and impact resistances does this unit support?
The optical block offers a high protection degree rated at IP65, and the integrated tempered glass is designed to withstand a shock energy impact of up to 20 Joules.
Q
Are custom colors and different safety insulation classes available?
Yes, the polyester powder paint color can be customized upon request. While the standard unit is Class I safety certified, Class II configuration is also available upon request.
