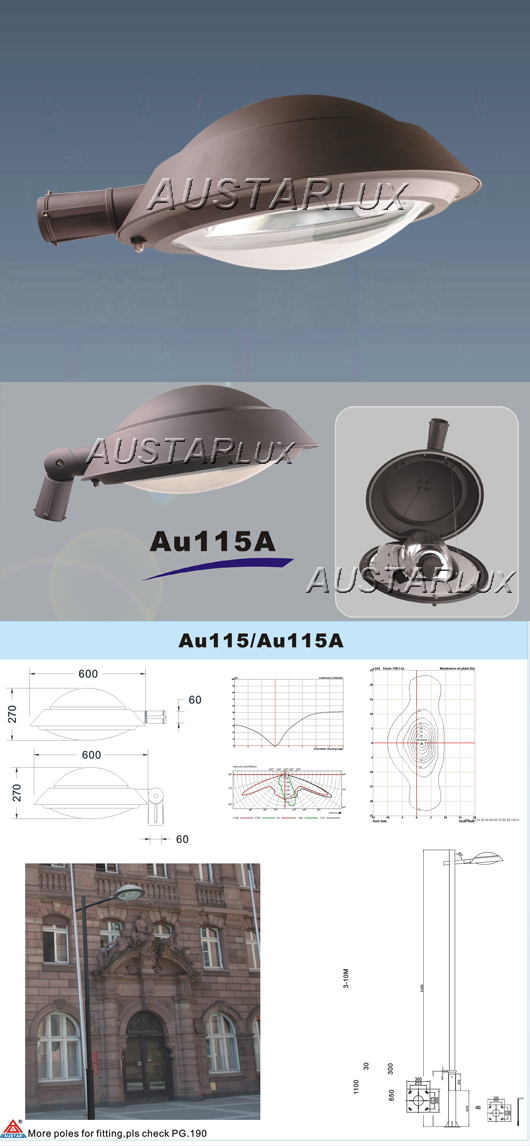

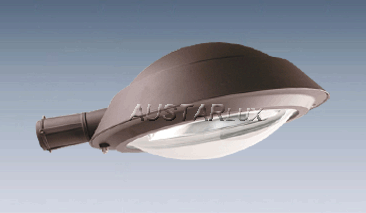

AU115, AU115A luminaire is made of 3 parts:
Made of die cast aluminium, it insures the overall protection of the luminaire.
Made of die cast aluminium. The frame is attached by means of a hinge and 1 S/S screw under the body, assuring easy access to the control gear and lamp.
It comprises a pure refined aluminium reflector, stamped out in one piece and polished which is attached to the frame, and another CDG steel reflector fixed with aluminium reflector. An arc tempered glass is sealed directly to the CDG steel reflector by means of a silicone seal insuring a high degree of protection.
Finish
Polyester powder, color on request
Protection Degree
Optical block IP65
Shock Energy
20 Joules (Tempered Glass)
Electrical Class
Class I (Class II on request)
Frequently Asked Questions (FAQ)
Q:
What materials are used in the construction of the AU115/AU115A luminaire?
The top cover and body are made of durable die cast aluminium. The optic system features a pure refined, single-piece stamped aluminium reflector along with a CDG steel reflector and arc tempered glass.
Q:
How is maintenance access designed for this luminaire?
The frame is attached via a hinge and a single stainless steel (S/S) screw located under the body, which ensures quick and easy access to the internal control gear and lamp.
Q:
What is the ingress protection (IP) rating of the optical block?
The optical block features an IP65 protection rating, sealed with a high-durability silicone seal to prevent dust and water ingress.
Q:
What impact resistance does the glass cover provide?
The arc tempered glass of the luminaire is highly robust, offering a shock energy resistance rating of 20 Joules.
Q:
What electrical insulation classes are available?
The luminaire standard configuration is Class I, and Class II configuration is available upon specific request.
Q:
Can I request a custom color for the exterior finish?
Yes, the luminaire is finished with a high-quality polyester powder coating, and custom colors can be provided on request.
