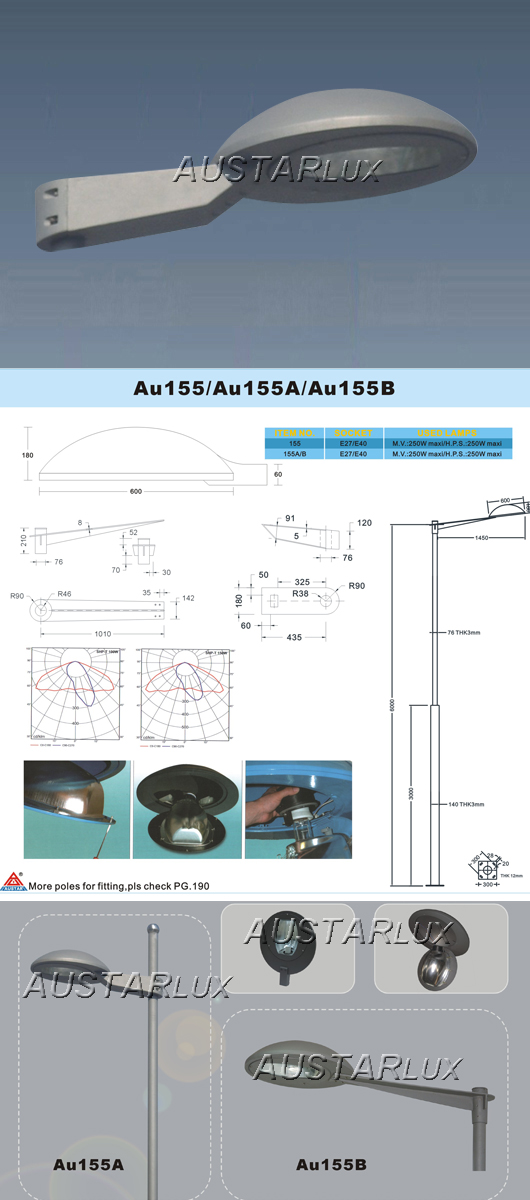

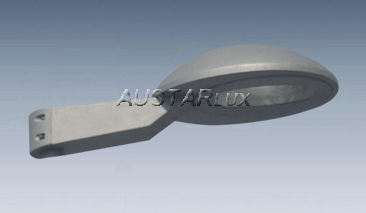

AU155A is made of 4 parts:
Made of spun aluminium sheet.
Made of die cast aluminium. The frame is attached by means of a hinge and 3 S/S screws under the body, assuring an easy access to the control gear and lamp.
Comprises a pure refined aluminium reflector, stamped out in one piece and polished which is attached to the frame. A flat clear tempered glass is sealed directly to the reflector by means of a silicone seal insuring a high degree of protection.
Made of cast aluminium. Painted by polyester powder, color on request.
Technical Specifications
Protection Degree
Optical block IP65
Shock Energy
20 Joules (Tempered Glass)
Electrical Class
Class I (Class II on request)
Frequently Asked Questions
What materials are used to construct the AU155A housing?
The AU155A is constructed using high-quality aluminium components, including a spun aluminium dome, a die-cast aluminium flat bottom cover, and a cast aluminium bracket.
How is the optical system protected against environmental elements?
The optical system is sealed with a flat clear tempered glass attached directly to the refined aluminium reflector via a silicone seal, providing an IP65 protection rating for the optical block.
What is the shock and impact resistance of the AU155A glass?
The flat clear tempered glass of the AU155A is designed to withstand a shock energy of up to 20 Joules.
Is it easy to access the internal control gear and lamp for maintenance?
Yes. Access is simplified by a hinged frame secured by 3 stainless steel (S/S) screws located under the main body, allowing quick access to the lamp and control gear.
What electrical insulation classes are supported?
The standard configuration is Class I, and a Class II electrical insulation configuration can be provided upon request.
Can the color of the bracket and body finish be customized?
Yes, the cast aluminium bracket is finished with polyester powder paint, and custom colors are available upon request.
