Wholesale AU5691 Manufacturer, Supplier

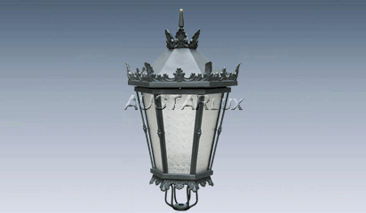

The AU5691 Luminaire (IMPERIAL LUMINAIRE) features a robust, premium design engineered with five primary structural parts, delivering reliable performance and flexible configuration options for high-quality outdoor and architectural lighting.

Protection: IP33 (Optical block IP65 on request)

Shock Energy: 2 Joules (Methacrylate Diffuser)

Class I (Class II available on request)

5 Key Component Parts

1. The Finial Top

Constructed from embossed aluminium sheet and securely fixed to the dome structure via a single copper piping.

2. The Dome

Made of pure aluminium and stamped out in a single piece, with 6 pieces fixed together. Designed for accessibility: once removed, the dome and control gears can be easily attained.

3. The Frame

Composed of 3 separate parts, including an aluminium sheet ring supported by 6 ribs in aluminium piping. This frame is fixed directly to the base flange with a mounting held at 26mm.

4. The Optical Block

Comprising 3 components sealed together to achieve high level protection. Features a frosted methacrylate diffuser and standard embossed CDG steel sheet reflector (IP33). An optional high-protection anodized pure aluminium reflector system is available with a silicon-sealed clear tempered glass (IP65). Control gear is configured systematically around the reflector.

5. The Base Flange

Constructed from cast aluminium with top mounting designed for 26mm. Protected and coated with high-grade polyester powder paint, with colors available upon request.

Control Gear Design

Mounted on a robust CDG steel sheet inside the structure. Once the dome and the finial top are dismantled, maintenance operators can easily attain the control gears.

Technical Parameters

ITEM NO.	SOCKET TYPE	SUITABLE / USED LAMPS
AU5691	E27 / E40	H.P.S: 250W maximum

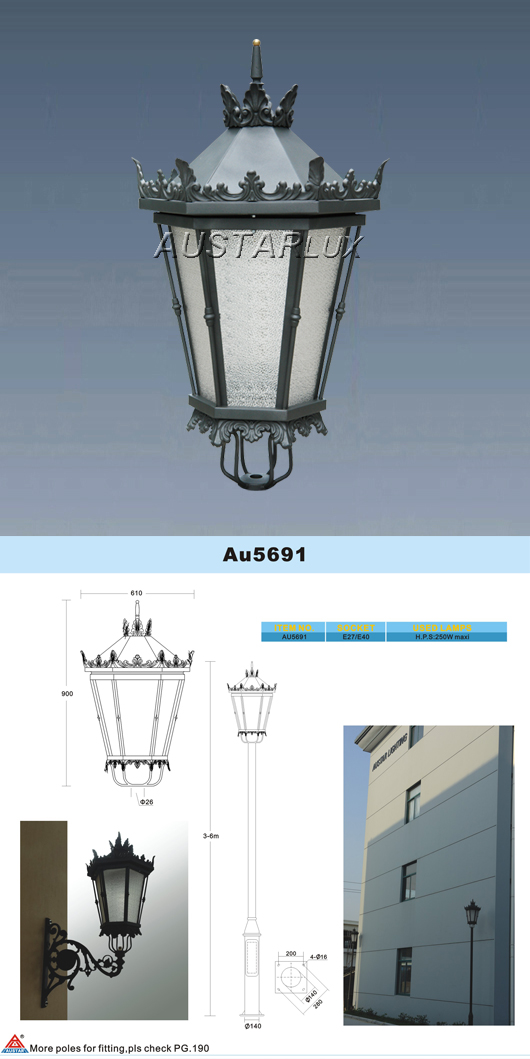

Product Visualization

Frequently Asked Questions

What materials are used to construct the AU5691 dome and frame?

The dome is stamped out in a single piece of pure aluminium (with 6 pieces fixed together). The frame consists of an aluminium sheet ring supported by 6 robust aluminium piping ribs attached to a cast aluminium base flange.

What is the protection degree (IP rating) of this luminaire?

The standard design features an IP33 protection level. However, a high-protection optical block with an IP65 rating can be provided upon request.

Which type of lamps and socket sizes are compatible with the AU5691?

The luminaire supports standard E27 and E40 socket types and is compatible with High-Pressure Sodium (H.P.S) lamps up to a maximum wattage of 250W.

How is the interior control gear accessed for maintenance?

The internal control gear is situated on a robust CDG steel sheet inside. It can be easily accessed and serviced once the dome and the finial top are removed.

What options are available for the reflector and diffusers?

The standard configuration features a frosted methacrylate diffuser (achieving a shock energy rating of 2 Joules) and an embossed CDG steel sheet reflector. Alternatively, you can select an anodized pure aluminium reflector sealed with a silicone gasket and clear tempered glass.

Can the color of the luminaire be customized?

Yes, the cast aluminium base and frame are finished with premium polyester powder paint. Custom colors are available to fit specific architectural or landscaping requests.
