Product Description

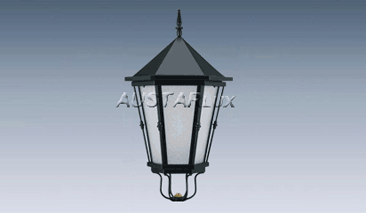

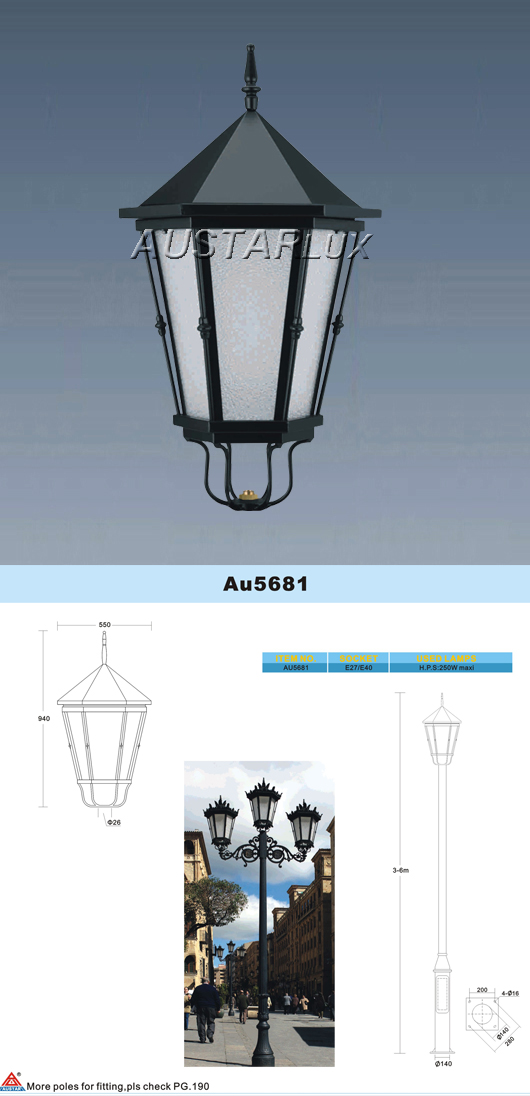

AU5681 luminaire is made of 5 parts.

Key Components

The Finial Top

Made of cast aluminium sheet fixed to the dome by means of 1 copper piping.

The Dome

Constructed in pure aluminium, stamped out in one piece, 6pcs fixed together. Once removed, the dome and control gears are easily attained.

The Frame

Made up of 3 parts: A ring in aluminium sheet supported by 6 ribs in aluminium piping fixed to the base flange. Mounting for 26mm held.

The Optical Block

Made up of 3 parts sealed together so as to obtain a high degree of protection. Features a diffuser in frost methacrylate.

The Base Flange

Made in cast aluminium, designed with top mounting for 26mm.

Technical Specifications

Control Gear: Located on the CDG steel sheet; easily attained once the dome and the finial top are removed.
Reflector Options: Embossed CDG steel sheet (IP33), OR pure aluminium stamped in one piece and anodized, fixed on the CDG steel sheet with a clear tempered glass sealed directly by a silicon seal (IP65).
Finish: Painted by polyester powder, color available on request.
Protection Degree: IP33 (Standard), Optical block IP65 available on request.
Shock Energy: 2 Joules (with methacrylate diffuser).
Electrical Class: CLASS I (Standard), CLASS II available on request.

Item No.	Socket	Used Lamps
AU5681	E27 / E40	H.P.S: 250W maxi

Frequently Asked Questions

What materials are used to construct the AU5681 dome and frame?

The dome is made of pure aluminium stamped out in one piece (6 pieces fixed together). The frame consists of an aluminium sheet ring supported by 6 ribs in aluminium piping fixed to the base flange.

How accessible is the control gear for maintenance?

Maintenance is simple; the control gear is placed on the CDG steel sheet and can be easily attained once the dome and the finial top are removed.

What IP protection ratings are available for this luminaire?

The standard protection degree is IP33, which uses an embossed CDG steel sheet reflector. An IP65 optical block rating is available on request, utilizing an anodized pure aluminium reflector with a clear tempered glass and silicon seal.

What are the socket and lamp specifications for the AU5681?

The luminaire features E27 and E40 socket configurations, suitable for High-Pressure Sodium (H.P.S) lamps up to a maximum of 250W.

What is the shock energy resistance rating of the diffuser?

The luminaire offers a shock energy resistance rating of 2 Joules, utilizing a high-quality frost methacrylate diffuser.

Can I request custom colors or specific electrical safety classes?

Yes, the luminaire is painted with polyester powder and custom colors are available on request. Additionally, while Class I is standard, Class II electrical safety configuration can also be provided on request.
