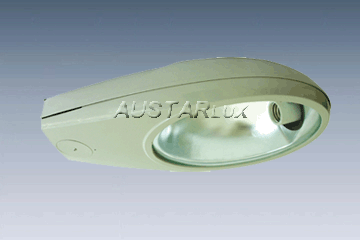

Made of die casting aluminium, insuring the overall protection of the luminaire.

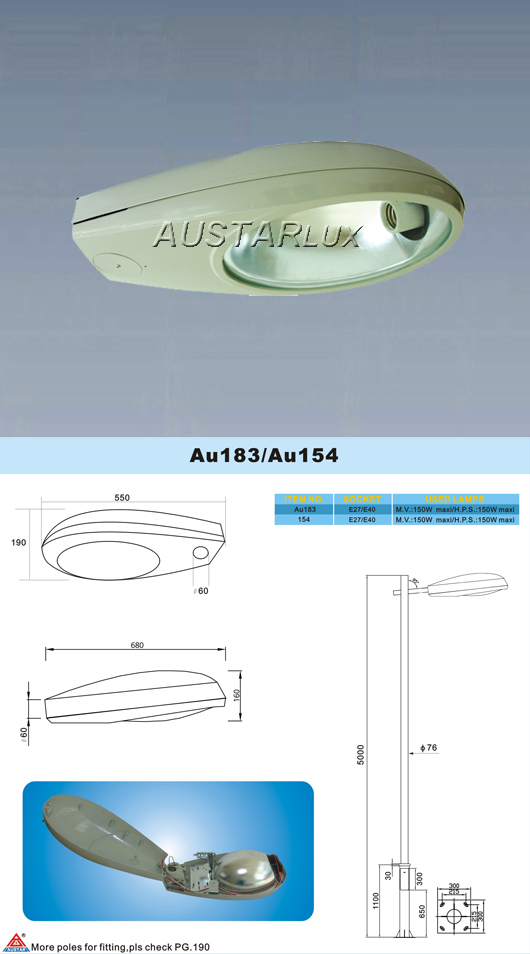

THE BODY
Made of die cast aluminium. The frame is attached by means of a hinge and 1 S/S clip to the body, assuring easy access to the control gear and lamp.
THE OPTIC SYSTEM
Comprises a pure refined aluminium reflector, stamped out in one piece and polished which is attached to the frame. An arc clear tempered glass is sealed directly to the reflector by means of a silicone seal, insuring a high degree of protection.
Specifications & Protection
Protection Degree: Optical block IP65
Shock Energy: 20 Joules (Tempered Glass)
Electrical Safety: Class I (Class II available on request)
Finish: Polyester powder painted, color on request
Frequently Asked Questions
Q:
What material is used for the AU183 luminaire structure?
The top cover and body of the AU183 luminaire are constructed from premium quality die-cast aluminium, which ensures long-lasting durability and robust protection.
Q:
How is maintenance access designed for this luminaire?
The frame is attached to the main body via a hinge and one stainless steel (S/S) clip, which allows for convenient and quick access to both the control gear and the lamp.
Q:
What are the features of the AU183 optic system?
The optic system features a polished, single-piece stamped pure refined aluminium reflector, and an arc clear tempered glass that is directly sealed to the reflector with a silicone gasket.
Q:
What is the protection and impact rating of the AU183 luminaire?
The optical block has a protection degree rating of IP65, and the tempered glass provides impact resistance of up to 20 Joules.
Q:
Are customized colors and class II protection available?
Yes, the luminaire comes in Class I as standard, but Class II can be requested. The finish is polyester powder painted, and specific colors can be customized upon request.
