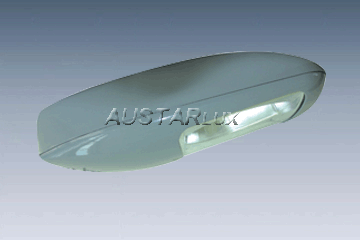

The AU182 luminaire is high-quality lighting equipment designed with reliability and durability in mind. The external finish is painted by polyester powder, with colors available on request.

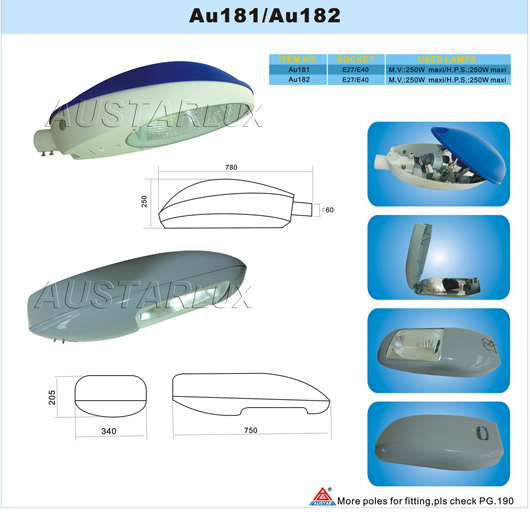

Luminaire Structure
THE TOP COVER
Made of die casting aluminium, it insures the overall protection of the luminaire.
THE BODY
Made of die cast aluminium. The frame is attached by means of a hinge and 1 S/S screw under the body, assuring easy access to the control gear and lamp.
THE OPTIC SYSTEM
It comprises a pure refined aluminium reflector, stamped out in one piece and polished which is attached to the frame. An arc clear tempered glass is sealed directly to the reflector by means of a silicone seal insuring a high degree of protection.
THE ADAPTOR
Made of die cast aluminium.
Technical Specifications
Protection Degree
Optical block IP65
Shock Energy
20 Joules (Tempered Glass)
Safety Class
Class I (Class II on request)
Frequently Asked Questions
QWhat are the main components of the AU182 luminaire?
The AU182 luminaire consists of four main parts: the top cover, the body, the optical system, and the adaptor.
QWhat material is used to construct the AU182 body and components?
The top cover, main body, and adaptor are constructed using high-quality die-cast aluminium for durability and protection.
QIs it easy to access the lamp and control gear inside the AU182?
Yes, the frame is attached via a hinge and secured with one stainless steel (S/S) screw located under the body, which allows for quick and easy maintenance access.
QWhat features comprise the optic system of the luminaire?
It features a one-piece stamped and polished pure refined aluminium reflector, and an arc clear tempered glass sealed directly to the reflector with a silicone seal.
QWhat is the IP protection rating and impact resistance of the AU182?
The optical block offers an IP65 protection degree, and the tempered glass provides shock energy resistance of up to 20 Joules.
QDoes the AU182 support Class II electrical isolation?
The standard product is rated Class I, but Class II protection can be provided upon request.
