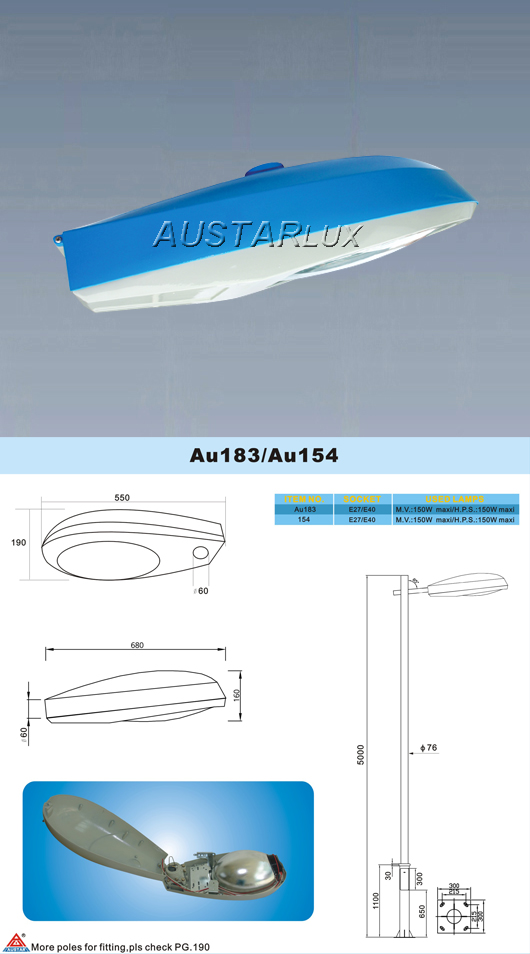

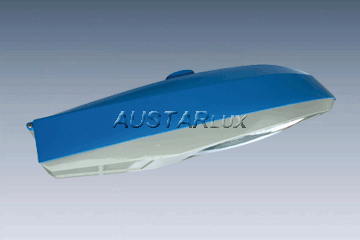

AU154 Luminaire Construction & Specification
Made of die casting aluminium, insures the overwhole protection of the luminaire.
Made of die cast aluminium. The frame is attached by means of a hinge and 1 S/S clip to the body, assuring easy access to the control gear and lamp.
It comprises a pure refined aluminium reflector, stamped out in one piece and polished which is attached to the frame. An arc clear tempered glass is sealed directly to the reflector by means of a silicone seal insuring a high degree of protection.
Protection Degree
Optical block IP65
Shock Energy
20 Joules (Tempered Glass)
Electrical Safety
CLASS I / CLASS II (on request)
Finish: Painted by polyester powder, color on request.
Q
What materials are used to manufacture the AU154 luminaire?
The top cover and body are constructed from durable die-cast aluminium. The optic system features a pure refined, single-piece stamped and polished aluminium reflector along with tempered glass.
Q
How is the optical block of the AU154 luminaire protected?
The optical block has an IP65 protection degree rating. It utilizes an arc clear tempered glass sealed directly to the reflector with a silicone seal to ensure high-level dust and water resistance.
Q
Is it easy to access the lamp and control gear inside the luminaire?
Yes, maintenance is made easy because the frame is connected to the body via a hinge and secured with one stainless steel (S/S) clip, offering quick and convenient access.
Q
What is the impact resistance level of the AU154 glass?
The tempered glass of the AU154 luminaire is highly robust, offering a shock energy resistance rating of 20 Joules.
Q
Can I choose a custom color or safety class for the AU154?
Yes, the luminaire is finished with polyester powder paint with custom colors available on request. It supports Class I insulation standard and can also be supplied as Class II on request.
