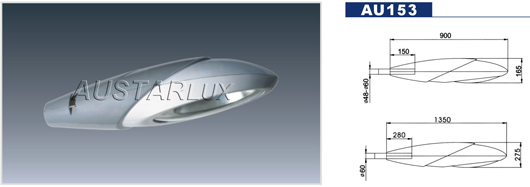

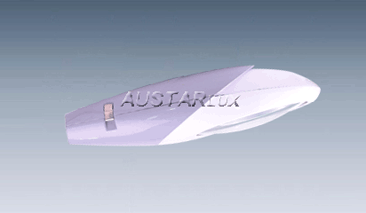

AU153 Luminaire Specification
AU153 luminaire is made of 3 parts:
The Top Cover
Made of die casting aluminium, it insures the overall protection of the luminaire.
The Body
Made of high-quality die-cast aluminium.
The Optical System
It comprises a pure refined aluminium reflector, stamped out in one piece and polished which is attached to the frame. A flat clear tempered glass is sealed directly to the reflector by means of a silicone seal insuring a high degree of protection.
Finish: Painted by polyester powder, color on request.
Protection Degree: Optical block IP65.
Frequently Asked Questions
What materials are used to construct the AU153 luminaire?
The AU153 luminaire is constructed using high-quality die-cast aluminium for both its body and its top cover, ensuring durable and robust protection.
How is the optical system of the AU153 luminaire designed?
The optical system features a single-piece, stamped and polished pure refined aluminium reflector attached to the frame. It is sealed with flat clear tempered glass using a silicone seal.
What is the IP protection rating of this luminaire?
The optical block of the AU153 luminaire has an IP65 protection degree rating, ensuring high resistance to dust and moisture ingress.
Can the color of the AU153 luminaire be customized?
Yes, the luminaire is painted with polyester powder, and custom colors are available upon request to suit your specific project requirements.
What ensures the environmental sealing of the optical system?
A flat, clear tempered glass is directly sealed to the refined aluminium reflector using a high-quality silicone seal to provide a secure and long-lasting barrier.
