Product Description

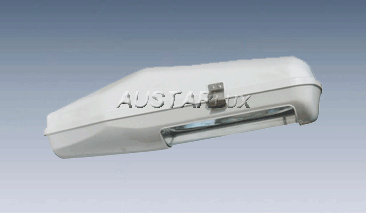

The AU113 luminaire is meticulously engineered and consists of 3 main parts:
The Top Cover

Made of die casting aluminium, it ensures the overall protection of the luminaire.

The Body

Constructed of high-strength die-cast aluminium.

The Optical System

It comprises a pure refined aluminium reflector, stamped out in one piece and polished, which is attached to the frame. A flat clear tempered glass is sealed directly to the reflector by means of a silicone seal, insuring a high degree of protection.

Protection Degree: Optical block IP65
Finish: Painted by polyester powder, color on request

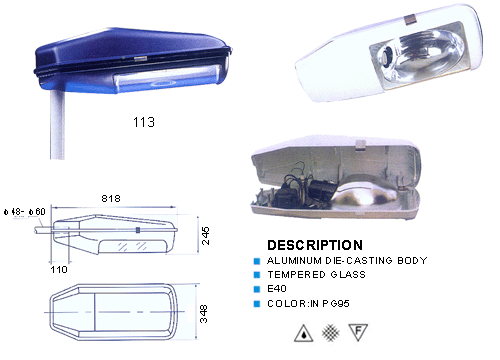

AU113 Luminaire Parts Diagram
Frequently Asked Questions
What are the three main components of the AU113 luminaire?

The AU113 luminaire is constructed of a top cover, a main body, and an integrated optical system.

What material is used to manufacture the body and top cover?

Both the top cover and the main body are manufactured from durable die-cast aluminium to ensure maximum protection and longevity.

How is the optical system structured?

The optical system contains a one-piece stamped and polished pure refined aluminium reflector, which is sealed directly with flat clear tempered glass using a silicone seal.

What is the IP protection rating of the optical block?

The optical block of the AU113 luminaire has an ingress protection rating of IP65.

What finish options are available for the luminaire?

The luminaire is coated with high-quality polyester powder paint, with colors available upon request to meet project requirements.
