Product Description

Product Overview

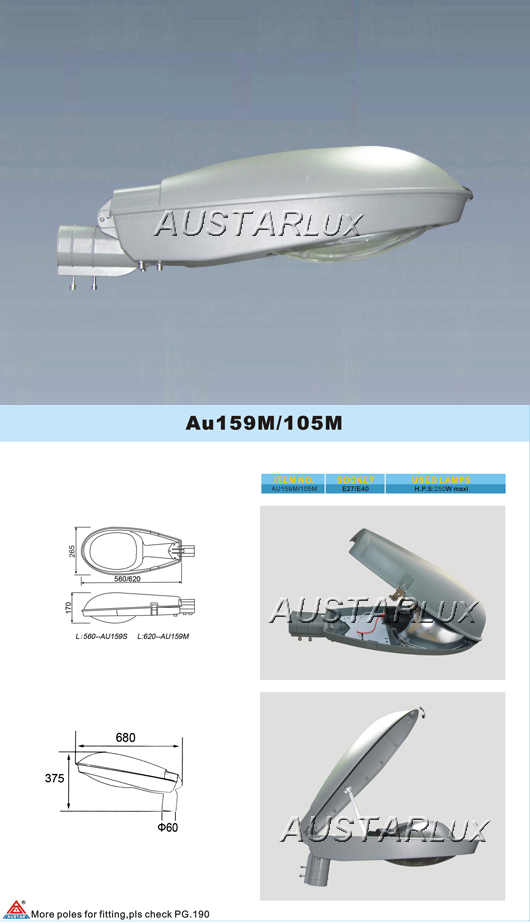

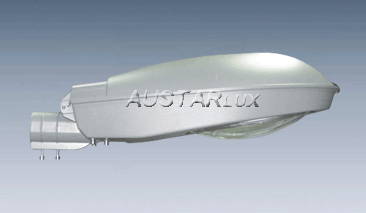

AU105M luminaire is engineered for durability and high performance, structured carefully with 4 functional parts:

■ THE TOP COVER

Made of die casting aluminium, insuring the overall protection of the luminaire.

■ THE BODY

Made of die cast aluminium. The frame is attached by means of a hinge and 1 S/S screw under the body, assuring easy access to the control gear and lamp.

■ THE OPTIC SYSTEM

Comprises a pure refined aluminium reflector, stamped out in one piece and polished, which is attached to the frame. A flat clear tempered glass is sealed directly to the reflector by means of a silicone seal insuring a high degree of protection.

■ THE ADAPTOR

Made of die cast aluminium.

Technical Specifications

Finish: Painted by polyester powder, color on request
Protection Degree: Optical block IP66
Shock Energy: 20 Joules (Tempered Glass)
Electrical Safety: CLASS I (CLASS II on request)
Max Wattage: 250W

Frequently Asked Questions

Q What material is the AU105M luminaire made of?

The main components, including the top cover, body, and adaptor, are constructed from robust die-cast aluminium for long-term outdoor durability.

Q What is the ingress protection (IP) rating of the optical system?

The optical block features an IP66 protection degree, sealed directly using a silicone seal for reliable weather protection.

Q What is the maximum supported wattage for this luminaire?

The AU105M luminaire supports a maximum lamp power capacity of 250W.

Q How is maintenance access facilitated in the body design?

The body features a frame attached by a hinge and secured with one stainless steel (S/S) screw under the body, which allows easy and quick access to the control gear and lamp.

Q Does the luminaire support class safety classifications?

Yes, it is standard CLASS I, but can be customized to CLASS II configuration upon request.

Q Can we customize the color finish of the AU105M?

Yes, the luminaire is finished with protective polyester powder coating, and custom colors are available upon request.
