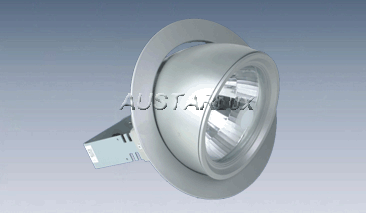

High-Quality DL1007 Factory, Factories

Product Description

Recessed Lighting Solution
  • Lamp Compatibility: Designed for recessed halogen lamps and metal-halide lamps, equipped with complete control gear.

  • Ballast Options: Electrical or inductance ballast options are available with separate or integrated installation configurations.

  • Premium Housing: Constructed with a durable die-cast aluminium alloy housing for optimal thermal management.

  • Advanced Optics: Reflector in super-pure aluminium, anodized and polished. Features anti-dazzling and thermoresistant protection glass.

  • Robust Finish & Colors: Finished with epoxy powder or galvanizing coating. Available in white, aluminium, black, gold, and other optional colors.

  • Versatile Application: Perfect for recessed mounting in indoor commercial buildings, providing partly focal lighting or complete illumination.

  • Electrical Specs: Rated at 230V 50Hz, utilizing electromagnetic control gear for halogen and metal-halide lamps.

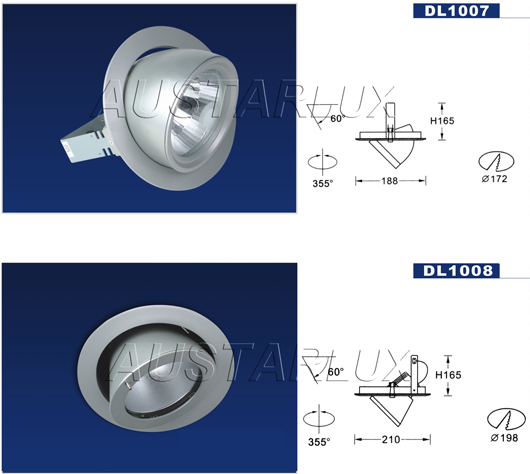

Recessed halogen and metal-halide lamp structure

Technical Specifications Summary

This recessed mounting fixture operates on a 230V 50Hz power supply, utilizing electromagnetic control gear specifically configured for halogen and metal-halide lamps. Constructed from robust die-cast aluminium alloy and finished with protective epoxy powder or galvanizing, the fixture integrates a high-purity, anodized aluminium reflector and protective anti-dazzling, thermoresistant glass to deliver high-quality focal or general commercial illumination.

Frequently Asked Questions (FAQ)

What types of lamps are compatible with this recessed fixture?

This fixture is compatible with recessed halogen lamps and metal-halide lamps, and comes complete with the necessary control gear.

What materials are used in the housing and reflector?

The outer housing is constructed from die-cast aluminium alloy, while the reflector is made of super-pure, anodized, and polished aluminium.

What are the electrical ballast and gear configurations?

It features options for either electrical or inductance ballasts (available as separate or integrated installation) and operates with electromagnetic control gear at 230V 50Hz.

Is the glass lens resistant to heat and glare?

Yes, the fixture is equipped with an anti-dazzling and thermoresistant protection glass cover to ensure safe and comfortable operation.

What color finishes can I choose from?

The housing surface finish is processed with epoxy powder or galvanizing, available in colors such as white, aluminium, black, gold, and more.

Where is this lighting fixture best applied?

It is designed for recessed mounting in indoor commercial buildings and is suitable for both partly focal lighting and complete general illumination.
