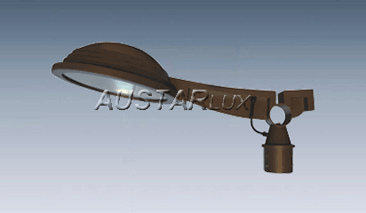

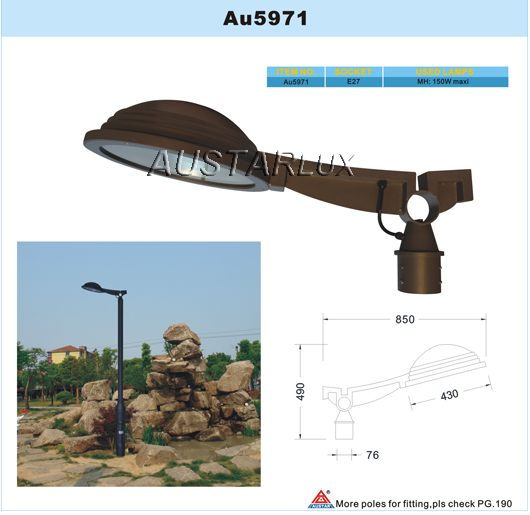

The AU5971 luminaire is constructed from high-quality components engineered for durability and high-performance lighting. The body features a robust 3-part design built to withstand demanding outdoor and industrial environments.
THE DOME: Manufactured in cast aluminium, the dome is securely held to the ring by means of 3 stainless steel (S/S) screws. Once removed, the ring and lamp assembly can be accessed with ease.
THE RING: Constructed from high-grade aluminium sheet.
THE OPTICAL BLOCK: Comprises a pure, refined aluminium reflector, stamped out in one single piece and anodized, which is attached directly to the frame. It is closed securely by a tempered glass sealed inside a cast aluminium ring, which is fastened to the frame by 3 stainless steel bolts. A premium silicon seal assures a high degree of protection.
Finished with high-durability polyester powder coating, with custom color options available upon request.
Technical Specifications
Protection Degree
IP65
Shock Energy
20 Joules
Safety Class
CLASS I (CLASS II on request)
Lamp Configurations
Item No.
Socket
Used Lamps
AU5971
E27
MH: 150W max
Frequently Asked Questions
Q: What materials are used to construct the AU5971 luminaire?
The AU5971 consists of three main parts: a cast aluminium dome, an aluminium sheet ring, and an optical block containing an anodized, pure refined aluminium reflector and tempered glass sealed inside a cast aluminium ring.
Q: How is the optical block protected against dust and water?
A high-quality silicon seal is used within the tempered glass and cast aluminium ring assembly, ensuring an IP65 protection rating to guard against dust and moisture.
Q: What is the impact resistance level of this luminaire?
The AU5971 luminaire is built to withstand significant physical impact, featuring a tested shock energy protection rating of 20 Joules.
Q: Can I request a specific finish color for this light fixture?
Yes, the fixture is painted with polyester powder coating, and custom colors are available upon request to fit your design requirements.
Q: What socket type and lamp options are compatible?
The fixture comes with an E27 socket and is designed to run Metal Halide (MH) lamps up to a maximum wattage of 150W.
Q: Is the AU5971 available in Class II electrical safety configuration?
The standard configuration is Class I, but Class II electrical safety protection can be provided upon request.
