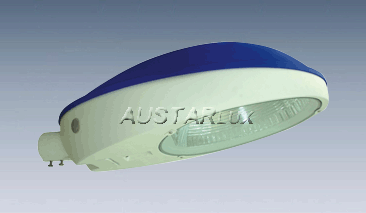

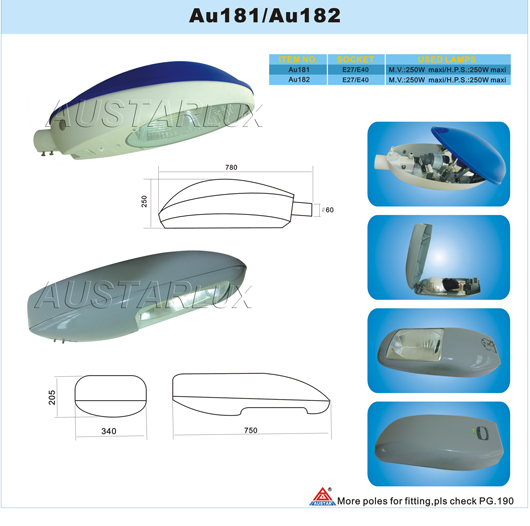

AU181 luminaire is made of 4 parts:
The Top Cover
Made of die casting aluminium, insures the overall protection of the luminaire.
The Body
Made of die cast aluminium. The frame is attached by means of a hinge and 1 S/S screw, under the body, assuring easy access to the control gear and lamp.
The Optic System
It comprises a pure refined aluminium reflector, stamped out in one piece and polished which is attached to the frame. An arc clear tempered glass is sealed directly to the reflector by means of a silicone seal insuring a high degree of protection.
The Adaptor
Made of die cast aluminium.
Technical Specifications
Finish
Painted by polyester powder, color on request
Protection Degree
Optical block IP65
Shock Energy
20 Joules (Tempered Glass)
Electrical Insulation
Class I (Class II on request)
What materials are used to construct the AU181 luminaire?
The main components, including the top cover, body, and adaptor, are manufactured from high-quality die-cast aluminium to ensure structural integrity and long-term durability.
How is the optical system protected in this luminaire?
It features a pure refined, single-piece stamped and polished aluminium reflector. An arc clear tempered glass is directly sealed to the reflector using a silicone seal, providing a high degree of protection.
What is the IP protection rating of the optical block?
The optical block of the AU181 luminaire is certified with an IP65 protection rating, securing it against dust and water ingress.
What level of impact resistance does the glass offer?
The tempered glass is engineered to withstand a shock energy of up to 20 Joules, ensuring robust resistance against external physical impacts.
Can the color of the luminaire be customized?
Yes, the surface is finished with protective polyester powder paint, and custom colors are available upon request.
Is the AU181 luminaire available with Class II insulation?
The standard model comes with Class I insulation, but a Class II electrical configuration can be provided upon request.
