High-Quality Court-Yard Luminaire Park Manufacturer, Manufacturers

Send Inquiry

Product Description

Technical Specifications

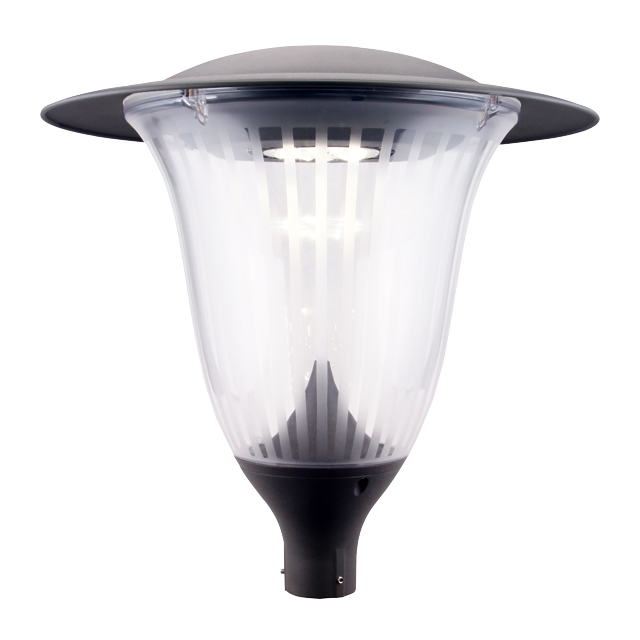

SERIES: Chiara
MATERIAL: Aluminium body+PC
INPUT VOLTAGE: 120-277VAC
WORKING CURRENT: 350~1050MA
POWER FACTOR: 0.96
LED Q'TY: 08-48pcs of LEDS
TOTAL CONSUMPTION: 20-80W
EFFICACY: >120 Lm/w

LED: Cree XPG3
BEAM PATTERN: C01,B01,A01,C02,D02
COLOR RENDERING INDEX: More than 75
PIPE MOUNTING DIA: 76mm
IP RATING: IP66
WORKING CONDITION: Temperature: -40℃~55℃ / Humidity: 10%~95%
LIFETIME: More than 50,000 hrs

Features

5 Years Warranty

Guaranteed reliability and performance support for 5 years.

Power Saving

Achieve at least 75% energy savings compared to traditional lighting.

Long Life

LEDs last for more than 50,000 hours (approx. 10 years at 12 hours/day).

Heat Dissipation

Patented heat dissipation design to achieve optimum operating efficiency.

Modular Design

Directly replace modules to easily adapt to other application needs.

Lab Tested & Solid-State

Tested in national labs per IES standards. High-shock and high-vibration resistant.

Instant-On & High CRI

No re-strike delay. 75 CRI enhances and restores original colors.

Application

Ideal for Rural Roads, Commercial Squares, Gardens, and Villas.

Especificaciones Técnicas

Estructura: Inyección de aluminio
Difusor óptico: PC alta resistencia, tratamiento anti-U.V.
Difusores laterales: Opcional (translúcido)
Dimensiones y peso: W 478 mm. H 661 mm. 8.5Kg
Sistemas de anclaje: Punta columna, palomilla o suspendida

Inclinación gradual: Opcional
Grado de protección: IP66, IK10
Garantía: 5/7/10 años
Certificación: CE; RoHS
Clase de seguridad: I/II

Especificaciones del Módulo LED

Potencia: 16W-80W
Eficiencia lm/W: 110-150 lm/W
Tensión de entrada: 90-305 V / ~ 50-60Hz (Según modelo)
Fuente de alimentación: PF > 0.95, Eficiencia > 88% (según modelo)

Vida útil: >50.000 horas (L80B10)
Tipo LED: Cree XPG3
Temperatura de color: 3.000 K / 4.000K / 5.000 K / PC-ámbar
CRI mínimo: 70/80
FHS: <1%

Chiara Series Model List

Model	Power	CCT (K)	Current	Lumen Output (3000K)	Lumen Output (4000K)	Lumen Output (5000K)	Efficacy	Efficiency
Chiara 8	16W	3/4/5000K	700mA	2,796 lm	2,316 lm	2,068 lm	129 lm/W	89%
Chiara 18	20W	3/4/5000K	350mA	3,596 lm	2,916 lm	2,668 lm	134 lm/W	91%
Chiara 16	35W	3/4/5000K	700mA	6,496 lm	4,956 lm	4,523 lm	130 lm/W	91%
Chiara 18	40W	3/4/5000K	700mA	7,239 lm	5,539 lm	5,154 lm	129 lm/W	93%
Chiara 32	70W	3/4/5000K	700mA	12,396 lm	9,996 lm	8,986 lm	128 lm/W	90%
Chiara 32	80W	3/4/5000K	800mA	13,996 lm	10,896 lm	9,586 lm	119 lm/W	87%

Frequently Asked Questions

What is the lifespan of the Chiara series LED lights?

The Chiara series LEDs have a lifetime of more than 50,000 hours (L80B10). This translates to approximately 10 years of operation assuming 12 hours of use per day.

What is the IP and IK rating for these fixtures?

The fixtures feature an IP66 ingress protection rating, making them highly dust and water-resistant, as well as an IK10 impact protection rating for high mechanical durability.

Can the LED modules be replaced individually?

Yes. Thanks to their patented modular design, you can directly replace the module if you want to adapt the fixture to a different type of application.

What type of LEDs and materials are used in the Chiara series?

The fixtures are built with a robust injected aluminium body and a high-resistance PC optic diffuser with anti-U.V. treatment. They utilize high-quality Cree XPG3 LEDs.

What is the energy-saving performance of the Chiara LED lights?

The Chiara series offers at least 75% energy savings compared to traditional lighting systems, with system efficacies reaching over 120 Lm/W (up to 150 Lm/W depending on the specific configuration).

Where can the Chiara series lighting be applied?

These fixtures are highly versatile and ideal for rural roads, commercial squares, gardens, villas, and other public or residential outdoor spaces.
