Product Description

Technical Specifications
Series AST MODULE
Material Aluminium body + PC
Input Voltage 120-277Vac
Working Current 700mA
Power Factor 0.96
LED Q'ty 16
Total Consumption 35W
Efficacy >97 lm/w
LED Chips Cree XPG2
Beam Pattern A01, A02, A03
Color Rendering Index More than 75
IP Rating IP66
Working Condition Temp: -40℃-55℃ / Humidity: 10%-95%
Lifetime More than 50,000 hrs
Key Features
Warranty

5 Years warranty provided.

Power Saving

At least 60% energy saving compared to conventional lighting.

Long Life

LEDs last for more than 50,000 hours.

Heat Dissipation

Patented heat dissipation design, achieve optimum efficiency.

Modular Design

Can replace the module directly, if you want another kind of application.

Lab Tested

Nation listing lab test in accordance with IES standards.

Solid-State

High-shock and High vibration resistant.

Instant-On

Light turns on right away, without delay in re-strike.

High CRI

75 CRI enhances all original colors.

Application

Rural road, commercial square, garden, villa.

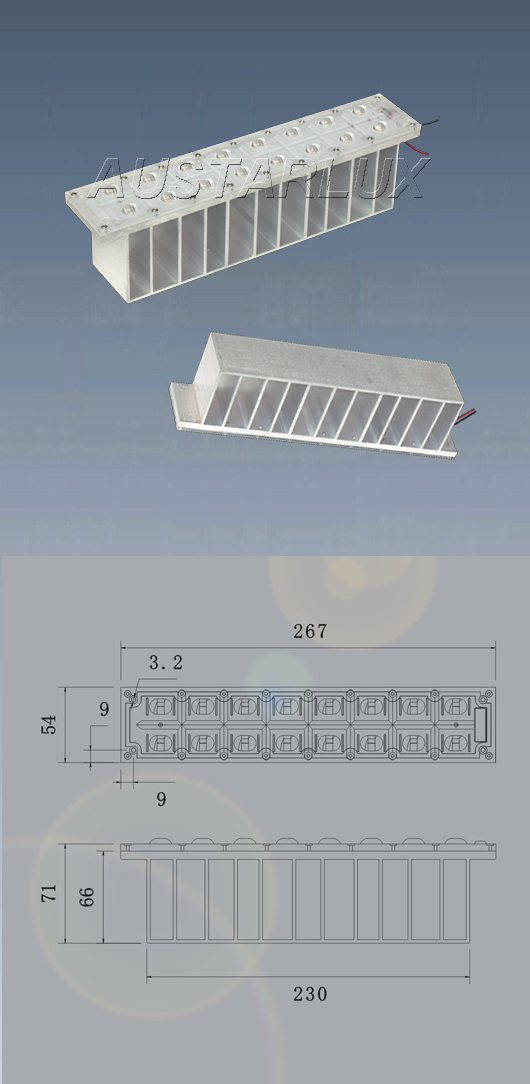

AST MODULE LED Module
Frequently Asked Questions
Q: What is the warranty period for this LED module?

A: The AST MODULE comes with a 5-year warranty.

Q: How much energy can be saved by using this module?

A: It offers at least 60% energy saving compared to traditional lighting systems.

Q: What is the lifetime of the LED chips?

A: The LEDs have a long service life lasting for more than 50,000 hours.

Q: What are the materials used in the construction?

A: It is constructed with a durable Aluminium body and PC material.

Q: What is the IP rating and working condition limits?

A: The module is rated IP66. It is designed to work in temperatures from -40℃ to 55℃ and humidity levels of 10% to 95%.

Q: Where can this LED module be applied?

A: It is suitable for rural roads, commercial squares, gardens, and villas.
