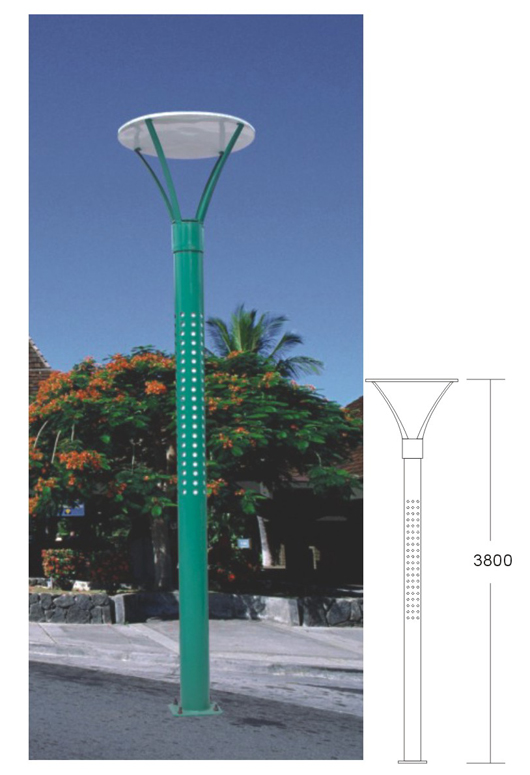

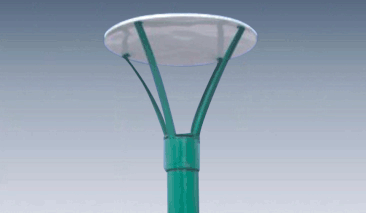

AU017 Luminaire Structure & Specification
The Reflector
Expertly manufactured using high-quality fiberglass materials, ensuring optimum light distribution and durability.
The Optical System
Featuring a fiberglass reflector closed by tempered glass, sealed inside a cast aluminium cover plate. The assembly is secured to the frame via 3 stainless steel (S/S) bolts, with a silicon seal ensuring a high degree of protection.
The Pole
Constructed from Hot Dip Galvanized steel. Custom pole thickness and finish colors painted by polyester powder are available on request.
Technical Specifications
Protection Degree
Optical block IP65
Shock Energy
20 Joules (Tempered glass)
Electrical Safety
Class I (Class II on request)
Frequently Asked Questions
Q: What material is the AU017 reflector made of?
The reflector of the AU017 luminaire is constructed from high-grade fiberglass for enhanced durability and performance.
Q: What is the ingress protection rating of the optical block?
The optical block of the AU017 luminaire offers a protection degree of IP65, utilizing a premium silicon seal to ensure resistance to dust and moisture.
Q: How is the optical system sealed and secured?
The optical system is sealed with tempered glass inside a cast aluminium cover plate, which is securely fastened to the frame with 3 stainless steel (S/S) bolts.
Q: Can the pole options and colors be customized?
Yes. The thickness of the Hot Dip Galvanized steel pole and the color of the polyester powder paint coating can be customized upon request.
Q: What shock resistance does the tempered glass offer?
The tempered glass utilized in the optical block is designed to withstand an impact shock energy of up to 20 Joules.
Q: Which electrical safety classes are supported?
The AU017 luminaire comes standard with Class I electrical protection, and Class II configuration is available upon request.
