Product Specifications
Series:

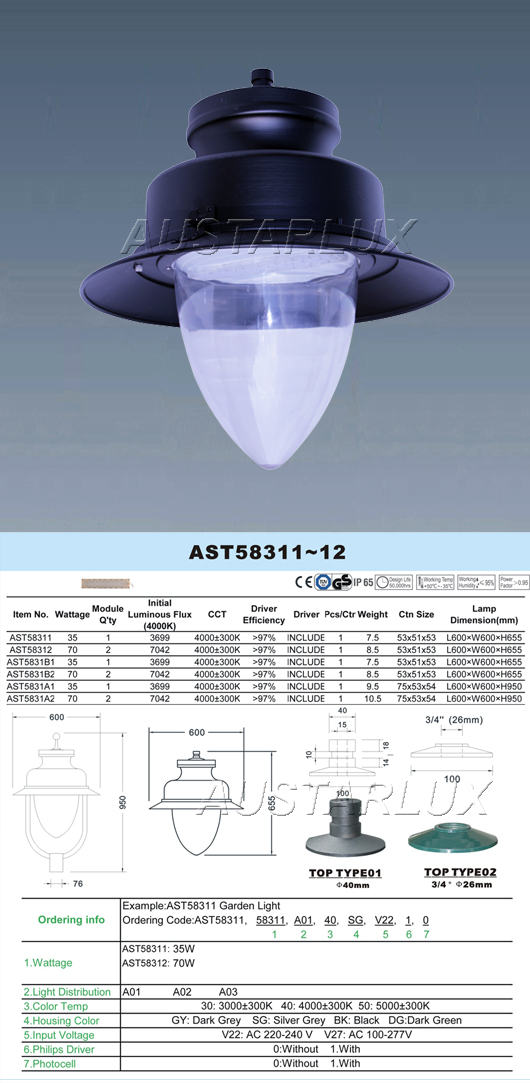

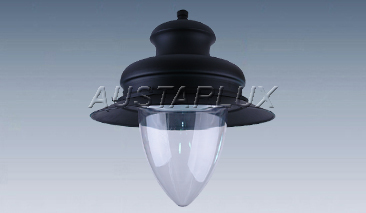

AST5831B1, AST5831B2
Material:
Aluminium body + PC
Input Voltage:
120-277Vac
Working Current:
700mA
Power Factor:
0.96
LED Q'ty:
16~32pcs
Total Consumption:
35W~70W
Efficacy:
>97 lm/w
LED Chips:
Cree XPG2
Beam Pattern:
A01, A02, A03
Color Rendering Index:
More than 75
Pipe Mounting Dia:
40mm
IP Rating:
IP65
Working Condition:
Temp: -40℃-55℃ / Humidity: 10％-95％
Lifetime:
More than 50,000 hrs.
Key Features
5 Years warranty provided.
At least 60％ energy saving.
LEDs last for more than 50,000hrs.
Patented heat dissipation design, achieve optimum efficiency.
Can replace the module directly, if you want another kind of application.
Nation listing lab test in accordance with IES standards.
High-shock and High vibration resistant.
Light turn on right away, without delay in re-strike.
75 CRI enhances all original colors.
Rural road, commercial square, garden, villa.
Frequently Asked Questions
What is the input voltage range for the AST5831B series?
The input voltage is 120-277Vac with a working current of 700mA, supporting various standard electrical setups.
What type of LED chips and efficacy levels do these lights feature?
These lights are equipped with Cree XPG2 LED chips, providing an exceptional efficacy of more than 97 lm/w.
What are the protection ratings and operating temperature limits?
The fixtures feature an IP65 rating and can operate in temperatures ranging from -40℃ to 55℃, with a humidity tolerance of 10% to 95%.
Does this lighting support modular component replacement?
Yes, it utilizes a modular design. You can replace the module directly to adapt the fixture to different types of applications.
What are the primary applications recommended for this series?
This series is ideally suited for installations on rural roads, commercial squares, gardens, and villas.
What is the expected lifespan and warranty period?
The LEDs have a long service life lasting more than 50,000 hours, and the system is backed by a 5-year warranty.
